Appearance

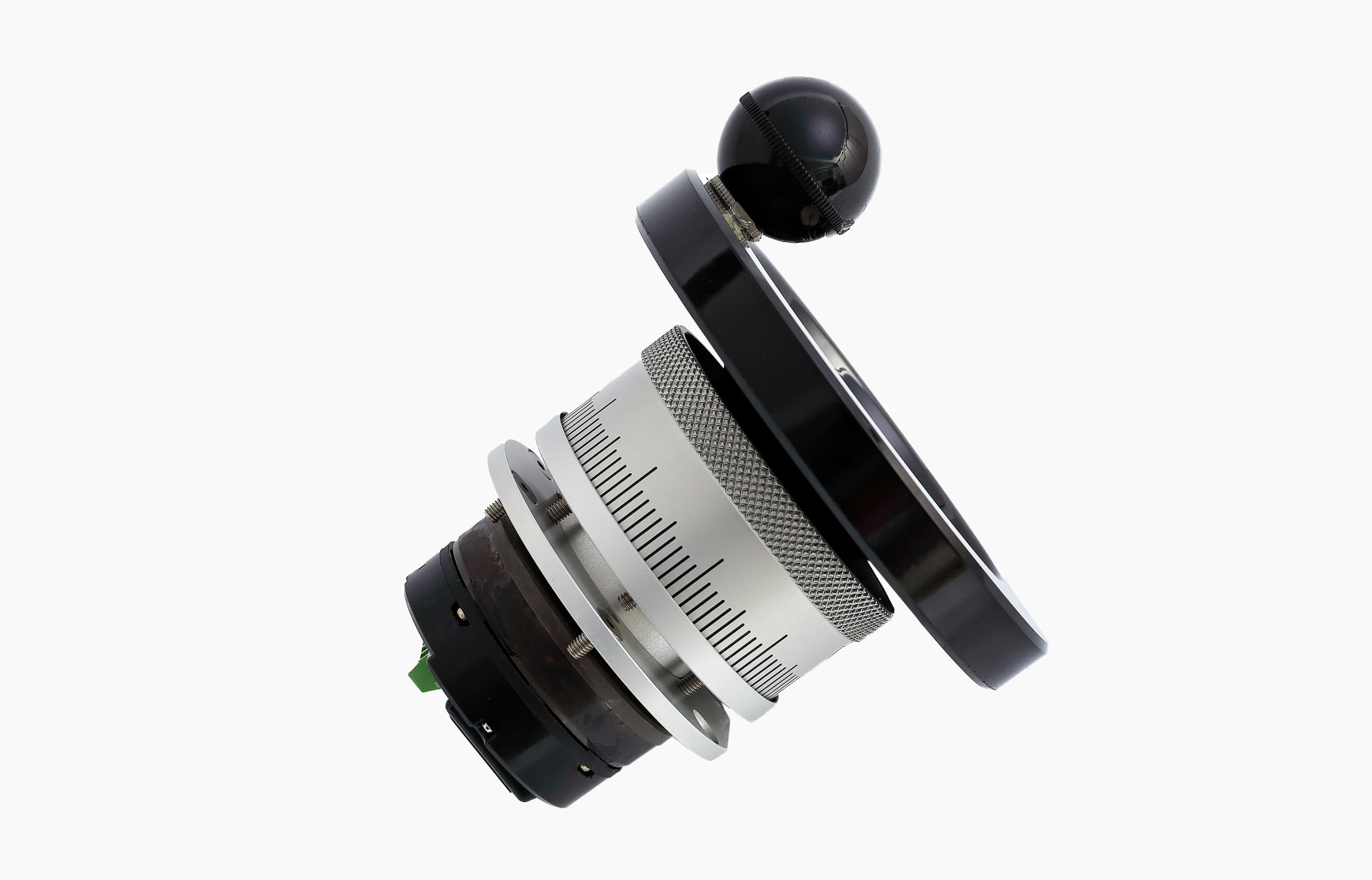

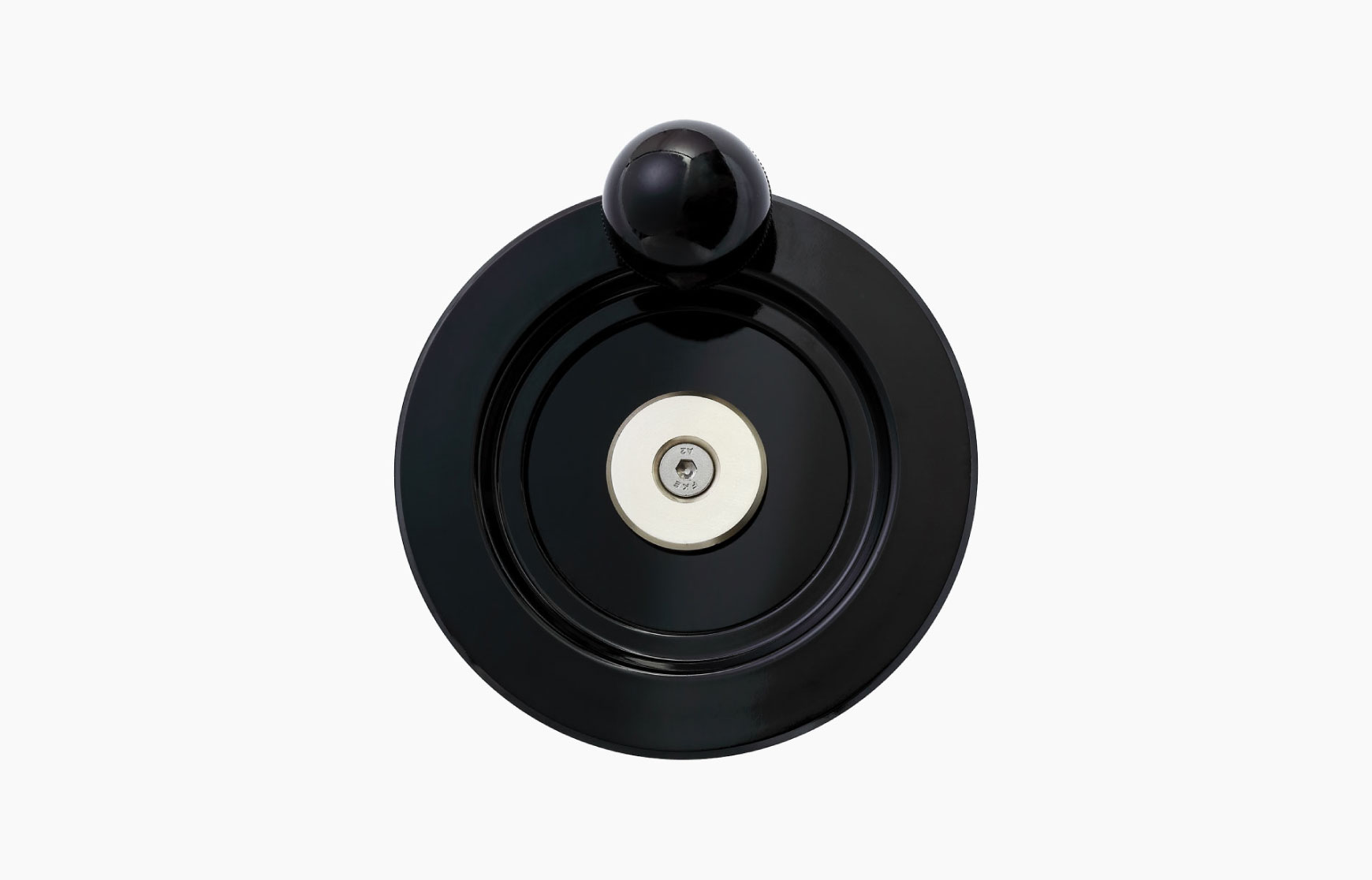

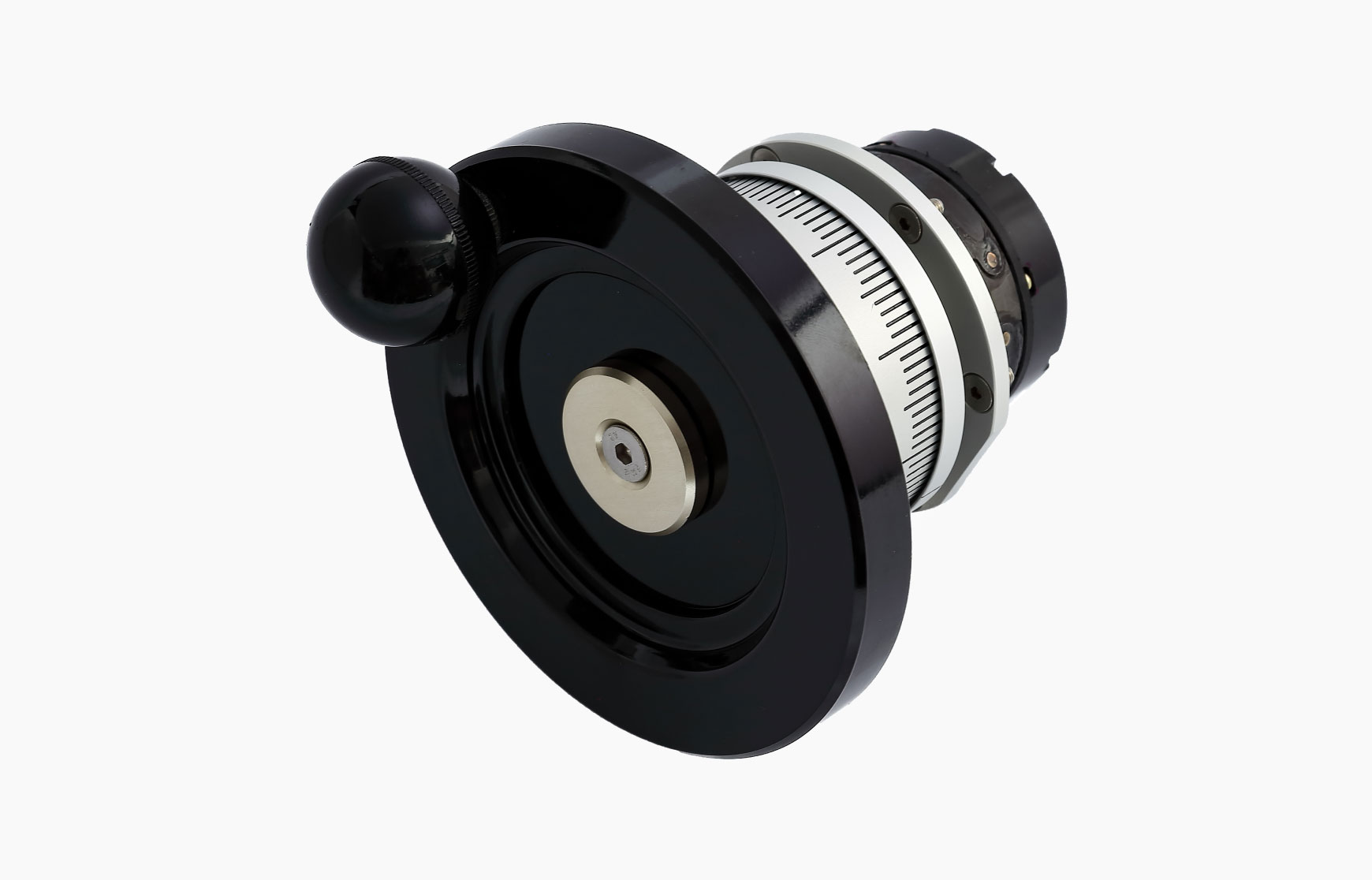

2/4 series electronic handwheel-large type, the outer diameter of the dial is 125mm and 140mm, the overall thickness (including the handle) is 106mm. The mounting hole is 62mm, with the six-point M4 nut to fix. Thus, the MPG is easy to install and maintain, which can save costs. It is suitable for CNC machine tools such as lathes, milling machines, grinders, vertical machining centers, horizontal machining centers, gantry machining centers, or industrial machinery. Contact us about needs for special machine.
Customization
MPG handwheel PPR can choose 100 pulses/100 revolutions, 25 pulses/100 revolutions. Types of MPG electric circuit include line driver, resistive (330Ω, 2.2kΩ), open circuits (i.e. open collector). The input voltage DC5V, DC12V, DC24V, or customized for requirements. The output voltage 5V, or open collector (current output type), which can withstand a maximum of Vcc-0.5V (above differential 3.5V), and a minimum of less than 0.1V. Applications for many controller systems, such as Japanese MITSUBISHI, FANUC, European SIEMENS, FAGOR, domestic LNC, SYNTEC. The manual pulse generator 2/4 series mainly uses in machines and equipment, if you have other uses, please contact us.
- Membrane FANUC Lathe Control Operation Panel
- MITSUBISHI Milling Machine Membrane Operator Panel
- Crystal Acrylic Button Switch Lathe Operator Panel
- Acrylic Button Switch Milling and Boring Machine Operator Panel
- Laser Engraving ABS Button CNC Lathe Operator Panel
- Laser Engraving ABS Button Milling Machine Operator Panel
- New Transparent Button CNC-Processing Center Operator Panel
- New Transparent Button CNC Machining Center Operator Panel
- Relay Module for CNC PLC PCB
- Module Circuit Board for IO Control
- Optocoupler Insulated Circuit Board
- Interface Module Series OMRON Relay Module
- Interface Modules: Making Industrial Communication Easy
- Signal Interface Modules with LED Indicators
- Power Distribution Units for Industrial Control Systems
125mm/140mm CNC Manual Pulse Generator MPG
Reliability, impact-resistance, long service life: MPG handwheel encoder
Performance
MPG 2/4 series manual pulse generators have two kinds of materials. The grip and surface dial are made of black plastic. The dial body is made of metal. Both have the same impact resistance. The large-scale design makes the numbers clear and easy to read. The scale will not wear or fade. The dial collar is easy to move, and easy to operate. The manual pulse generator series (i.e. rotary MPG encoder) can resist static electricity ±10KV. DC5V to 24V full voltage inputs. Forward and reverse current input protection and other circuit protection mechanisms. Therefore, the misconnection of the wire will not burn out. It is easy to use and maintain, and reduce the costs.
The handwheel pulse encoder has precise parameter settings, fast output response, 600RPM instantaneous speed without any signal lost. The MPG performs efficiently without high cost, you can benefit from it. The service life is more than 3 million revolutions. It is suitable for a variety of industrial environments. The manual pulse generator series is widely used in CNC machine tools.
MPG Major parameters
MPG Electric circuits
MPG 2/4 series manual pulse generators have two kinds of materials. The grip and surface dial are made of black plastic. The dial body is made of metal. Both have the same impact resistance. The large-scale design makes the numbers clear and easy to read. The scale will not wear or fade. The dial collar is easy to move, and easy to operate. The manual pulse generator series (i.e. rotary MPG encoder) can resist static electricity ±10KV. DC5V to 24V full voltage inputs. Forward and reverse current input protection and other circuit protection mechanisms. Therefore, the misconnection of the wire will not burn out. It is easy to use and maintain, and reduce the costs.
The handwheel pulse encoder has precise parameter settings, fast output response, 600RPM instantaneous speed without any signal lost. The MPG performs efficiently without high cost, you can benefit from it. The service life is more than 3 million revolutions. It is suitable for a variety of industrial environments. The manual pulse generator series is widely used in CNC machine tools.
MPG Major parameters
| Input Volt | Volt Output | Max. Freg. Resp. | Max. Output Current | Tr/Tf Time | Working Temp. | Storing Temp. |
|
DC5V | DC24V |
High: ≧Vcc-0.5V (Line Driver ≧3.5V) Low: ≦0.1V |
5KHz | 20mA MAX | ≦1µs |
-10°C | 60°C |
-20°C | 70°C |
| Max Power Current | Start Torgue | Axis Load | Max. Speed | Rotate | Weight | Protection |
| 80mA MAX |
1.6 | 6.0x10-2N,m |
Axial: 9.8 N Radial: 16.6N |
Inst. 600RPM Cont. 200RPM |
Over 3 million times rotation (300 RPM) |
≦50g (Not include dial) |
Resist of ESD±10KV IP65/CE |
MPG Electric circuits
Line Driver(D)
Pull-up(R)
Open Circuit(O.C.)
Standard specifications
We provide professional consultation and sample trials. MPQ.
One year warranty. The limited warranty does not include failures due to abuse or accidental damage.
| NO. | Model | Application | Specifications |
| 1 | 1D5 | SIEMENS | 100PPR / in 5-24V / out 5 V / Line Driver |
| 2 | 1R5 | FANUC | 100PPR / in 5-24V / out 5 V / Pull-up (330Ω) |
| 3 | 2R5 | MITSUBISHI | 25PPR / in 5-24V / out 5 V / Pull-up (2.2KΩ) |
| 4 | 141 | Industrial type | 100PPR / in 5-24V / out 5-24V / Open Circuit |
| 5 | 1R1 | Industrial type | 100PPR / in 5-24V / out 5-24V / Open Circuit (2.2KΩ) |
| 6 | 241 | Industrial type | 25PPR / in 5-24V / out 5-24V / Open Circuit |
| 7 | 2D5 | Industrial type | 25PPR / in 5V / out 5 V / Line Driver |
| 8 | 161 | Industrial type | 100PPR / in 5-24V / out 5-24V / Line Driver |
We provide professional consultation and sample trials. MPQ.
One year warranty. The limited warranty does not include failures due to abuse or accidental damage.
FEATURES
- Scale-dial outer diameter: 125mm, 140mm
- The black grip and surface are made of plastic material. The main part is made of metal. The scale numbers are easy to read and will not wear or fade.
- The front IP65 grade is dust-proof, water-proof and oil-proof, in line with CE regulations.
- Excellent tactility, good operating feeling, fast output response without losing any signal.
- Optical encoder, non-contact detection, high precision and reliable output signal.
- Circuit protection mechanisms such as full voltage input, reverse power polarity protection, anti-static interference.
- The service life is more than 3 million revolutions.
- Simple fixed, easy DIY installation and replacement.
- A variety of output types, can customize according to controllers (Japanese, European, domestic)
- Applications: large-scale CNC machine tools such as lathes, milling machines, grinders, drilling machines, gantry machines, industrial machinery
Dimensions
For example: MPG 2/4 Series 1R5-MS2 or 1R5-MS4
Common controller specifications are as follows: 1D5 for SIEMENS, 1R5 for FANUC, 2R5 for MITSUBISHI.
Attachment
Common controller specifications are as follows: 1D5 for SIEMENS, 1R5 for FANUC, 2R5 for MITSUBISHI.
