Power Distribution Units for Industrial Control Systems

Power distribution units (PDUs) are crucial components of automation control systems, providing various signal conversion, transmission, and processing capabilities to meet the needs of industrial applications. PDUs can work seamlessly with different types of industrial sensors to collect parameter signals, isolate and transmit them to local and remote monitoring systems.

PDUs find extensive use in several industrial sectors, including machinery, electrical, telecommunications, power, oil and gas, chemical, steel, wastewater treatment, and building construction. They are primarily used for data acquisition, signal transmission and conversion, and PLC/DCS industrial control systems. PDUs complement the functions of analog I/O modules, enhance system flexibility, and improve reliability in harsh industrial environments.

Major parameters

PDUs Module connection number 8 + 8

SPECIFICATION
Distribution Type	1 input to 8 output
Connection Number	8+8
LxWxH (mm)	38.2 x 47.9 x 30.3
Connection Method	PID
INPUT
Input Voltage	50VDC
Max. Current/Single Pole	20A
Total Input Current	40A
Wire Range	26-12 AWG
Stripping Length	9-10mm
Applicable Ferrules	DINKLE DN00510D, DN00710D, DN01510D
OUTPUT
Output Voltage	50VDC
Max. Current/Single Pole	12A (Total output below 40A)
Wire Range	26-16 AWG
Stripping Length	8-9mm
Applicable Ferrules	DINKLE DN00508D, DN00708D

PDUs Module connection number 12 + 12

SPECIFICATION
Distribution Type	1 input to 12 output
Connection Number	12+12
LxWxH (mm)	38.2 x 47.9 x 30.3
Connection Method	PID
INPUT
Input Voltage	50VDC
Max. Current/Single Pole	20A
Total Input Current	40A
Wire Range	26-12 AWG
Stripping Length	9-10mm
Applicable Ferrules	DINKLE DN00510D, DN00710D, DN01510D
OUTPUT
Output Voltage	50VDC
Max. Current/Single Pole	12A (Total output below 40A)
Wire Range	26-16 AWG
Stripping Length	8-9mm
Applicable Ferrules	DINKLE DN00508D, DN00708D

PDUs Module connection number 18 + 18

SPECIFICATION
Distribution Type	1 input to 18 output
Connection Number	18+18
LxWxH (mm)	49.8 x 47.9 x 30.3
Connection Method	PID
INPUT
Input Voltage	50VDC
Max. Current/Single Pole	20A
Total Input Current	40A
Wire Range	26-12 AWG
Stripping Length	9-10mm
Applicable Ferrules	DINKLE DN00510D, DN00710D, DN01510D
OUTPUT
Output Voltage	50VDC
Max. Current/Single Pole	12A (Total output below 40A)
Wire Range	26-16 AWG
Stripping Length	8-9mm
Applicable Ferrules	DINKLE DN00508D, DN00708D

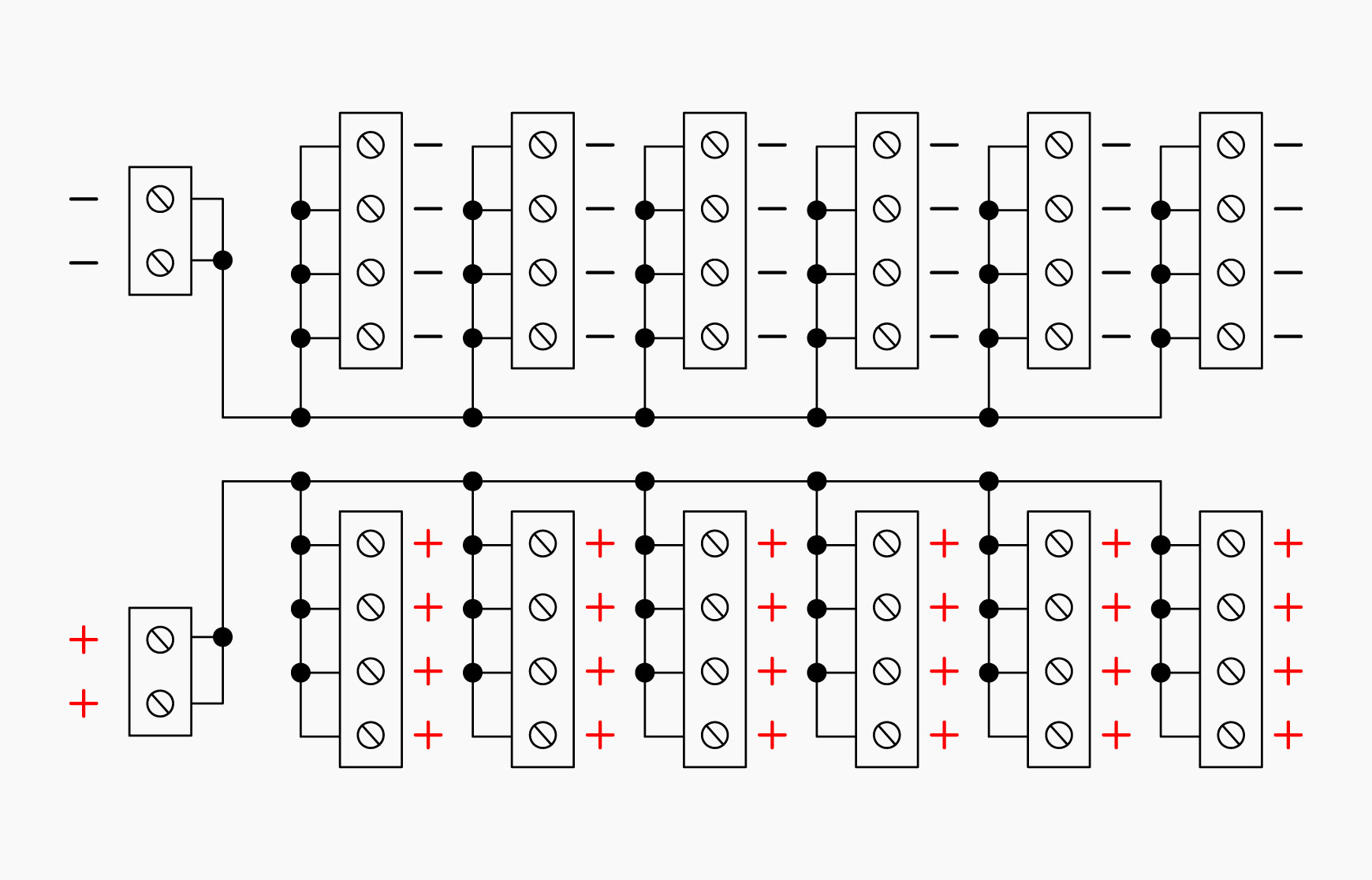

PDUs Module connection number 24 + 24

SPECIFICATION
Distribution Type	1 input to 24 output
Connection Number	24+24
LxWxH (mm)	68 x 47.9 x 30.3
Connection Method	PID
INPUT
Input Voltage	50VDC
Max. Current/Single Pole	20A
Total Input Current	40A
Wire Range	26-12 AWG
Stripping Length	9-10mm
Applicable Ferrules	DINKLE DN00510D, DN00710D, DN01510D
OUTPUT
Output Voltage	50VDC
Max. Current/Single Pole	12A (Total output below 40A)
Wire Range	26-16 AWG
Stripping Length	8-9mm
Applicable Ferrules	DINKLE DN00508D, DN00708D

PDUs Module connection number 24 + 24

SPECIFICATION
Distribution Type	1 input to 24 output
Connection Number	24+24
LxWxH (mm)	35.2 x 77.9 x 30.3
Connection Method	PID
INPUT
Input Voltage	50VDC
Max. Current/Single Pole	20A
Total Input Current	40A
Wire Range	26-12 AWG
Stripping Length	9-10mm
Applicable Ferrules	DINKLE DN00510D, DN00710D, DN01510D
OUTPUT
Output Voltage	50VDC
Max. Current/Single Pole	12A (Total output below 40A)
Wire Range	26-16 AWG
Stripping Length	8-9mm
Applicable Ferrules	DINKLE DN00508D, DN00708D

PDUs Module connection number 8 + 8

SPECIFICATION
Distribution Type	1 input to 8 output
Connection Number	8+8
LxWxH (mm)	49.8 x 47.9 x 30.3
Connection Method	PID
INPUT
Input Voltage	300VAC
Max. Current/Single Pole	20A
Total Input Current	20A
Wire Range	26-12 AWG
Stripping Length	9-10mm
Applicable Ferrules	DINKLE DN00510D, DN00710D, DN01510D
OUTPUT
Output Voltage	300VAC
Max. Current/Single Pole	20A (Total output below 20A)
Wire Range	26-16 AWG
Stripping Length	9-10mm
Applicable Ferrules	DINKLE DN00508D, DN00708D

PDUs Module connection number 8 + 8 + 8

SPECIFICATION
Distribution Type	1 input to 8 output
Connection Number	8+8+8
LxWxH (mm)	68 x 47.9 x 30.3
Connection Method	PID
INPUT
Input Voltage	300VAC
Max. Current/Single Pole	20A
Total Input Current	20A
Wire Range	26-12 AWG
Stripping Length	9-10mm
Applicable Ferrules	DINKLE DN00510D, DN00710D, DN01510D
OUTPUT
Output Voltage	300VAC
Max. Current/Single Pole	20A (Total output below 20A)
Wire Range	26-12 AWG
Stripping Length	9-10mm
Applicable Ferrules	DINKLE DN00510D, DN00710D, DN01510D

FEATURE

Improved compatibility with different signal formats and protocols
Enhanced signal quality and reduced noise interference
Increased efficiency in signal conversion, transmission, and processing
Comprehensive isolation and protection of signal inputs and outputs
Easy installation and integration with existing control systems

Power distribution units are critical components of industrial control systems, providing essential signal conversion, transmission, and processing capabilities. By using PDUs, industrial operators can enhance the functionality of their control systems, improve data acquisition, and ensure reliable performance in harsh environments.
