FANUC Lathe Membrane Operator Panel

FANUC standard membrane switches, turning machine control panel
The operating panel is specially designed for FANUC controller of CNC lathe, turning machine. Applicable systems: 0i series such as 0i-MD, 0i-MATE, 0i-MF.

The advantage of the membrane panel is light and thin, and can be made of various shapes and sizes. The background color usually is dark gray (FANUC gray). Pantone full-color and gradient color membrane panel can print out according to the requirements. There are several specifications of copper buttons and the corner protection without screws. The graphics and texts of the function buttons can freely configure, and print according to the customer's graphics files (.jpg, .png, .dwg, .psd, .ai, .dxf). The surface material is uniform and detailed. Good texture, waterproof, oil resistance, friction resistance, scratch resistance. Easy to clean, and increase the service life of the panel in the factory environment.

Excellent backlight effect, brisk touch feel. It is vibration resistance, shock resistance, and mistaken touch prevention, which is suitable for factory environment. We use OMRON specifications push-button switch, actuating force 2.55N, working temperature -25°C to +70°C, mechanical life up to 100,000 times the above.

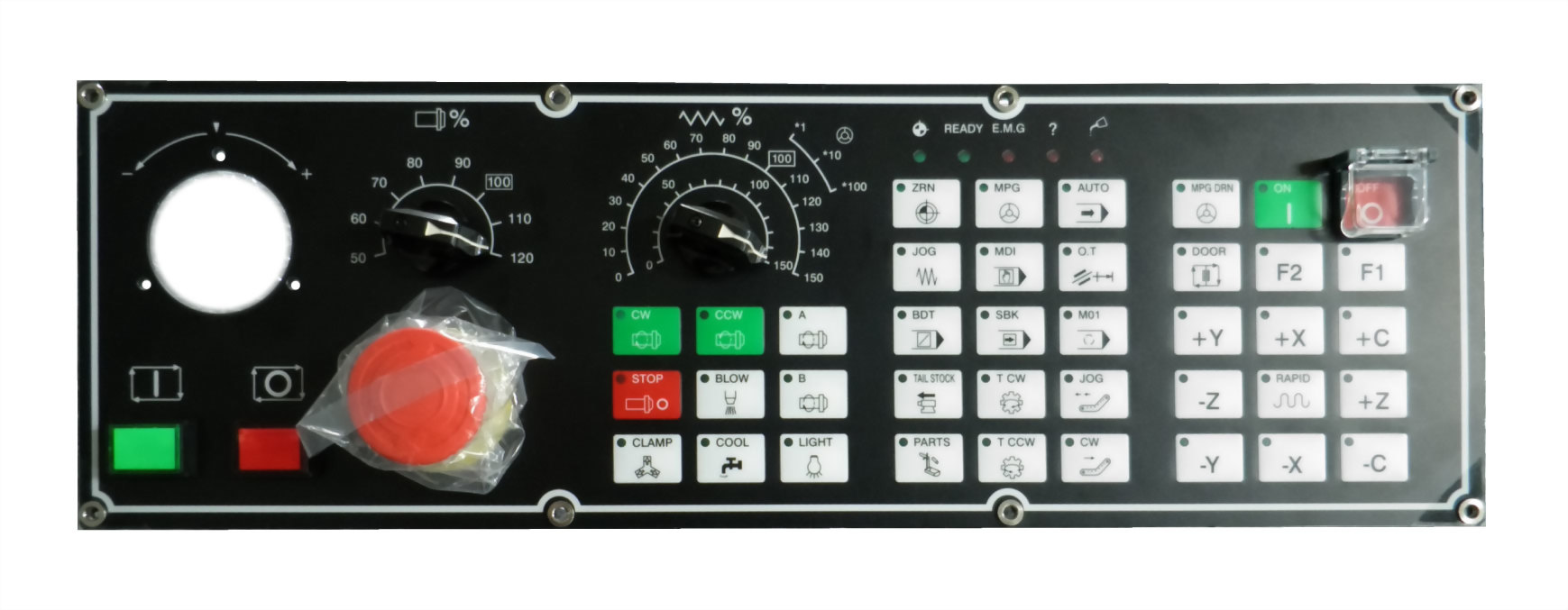

FANUC lathe membrane operator panel
FEATURES
  • Specially designed for FANUC controllers use.
  • CNC lathe machine-oriented.
  • Dot matrix type, matrix type, optimized circuit integration.
  • Consider ergonomic design and optimize operating experience.
  • Full color printing with Pantone Colour.
  • Mechanical durability is more than100,000 operations (for OMRON specification).
  • The code switch series has multiple positions, and can output such as point-to-point, binary, anti-binary, gray code, anti gray code coding.
  • IP67 waterproof and dustproof (must match the environment of the customer's electronic cabinets).
  • CE
  • ROHS(Lead-free, environment friendly)
  • Industrial environment use.
  • One year guarantee under normal use.
  • Sheet metal size can customize according to needs.

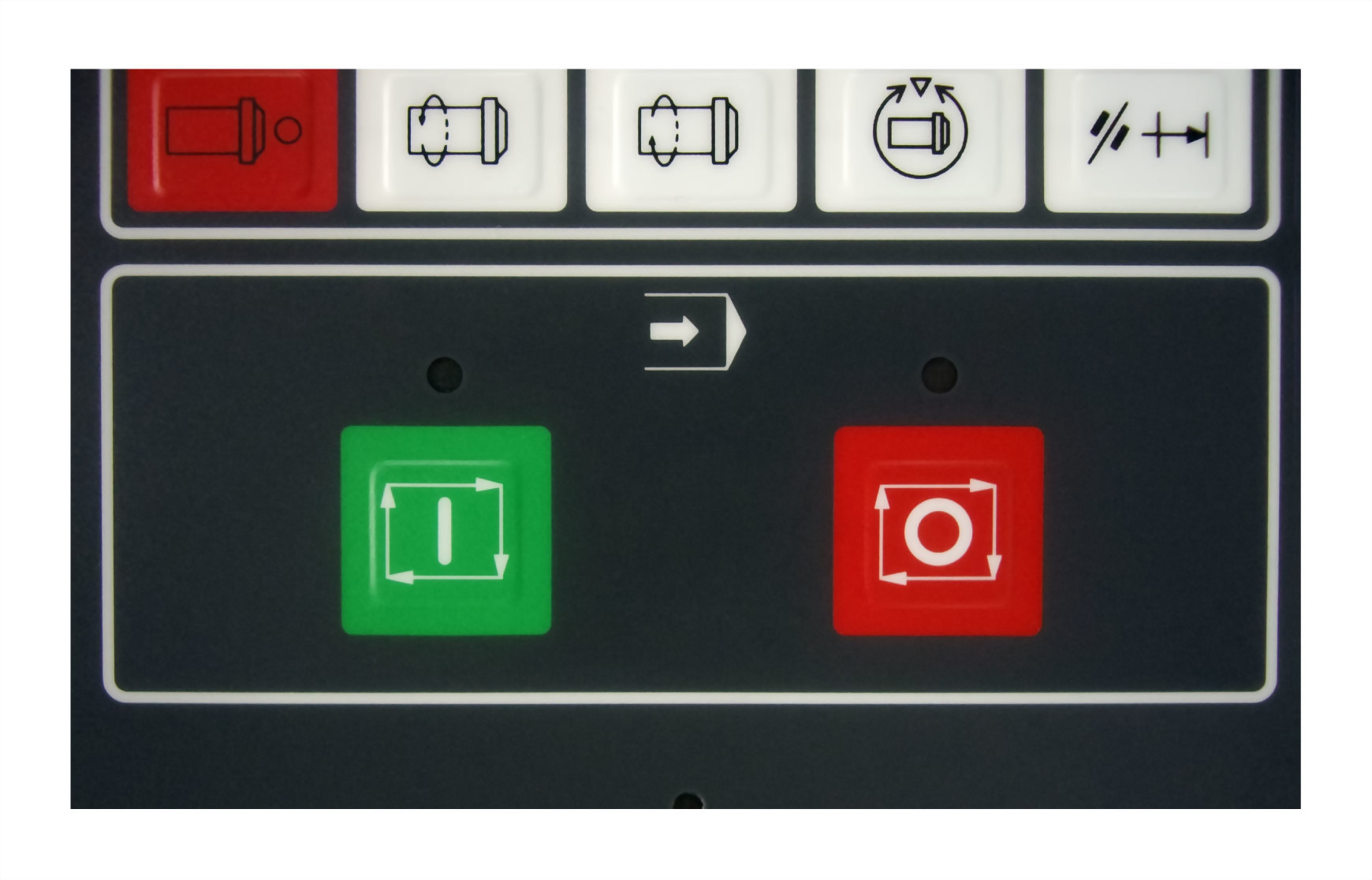

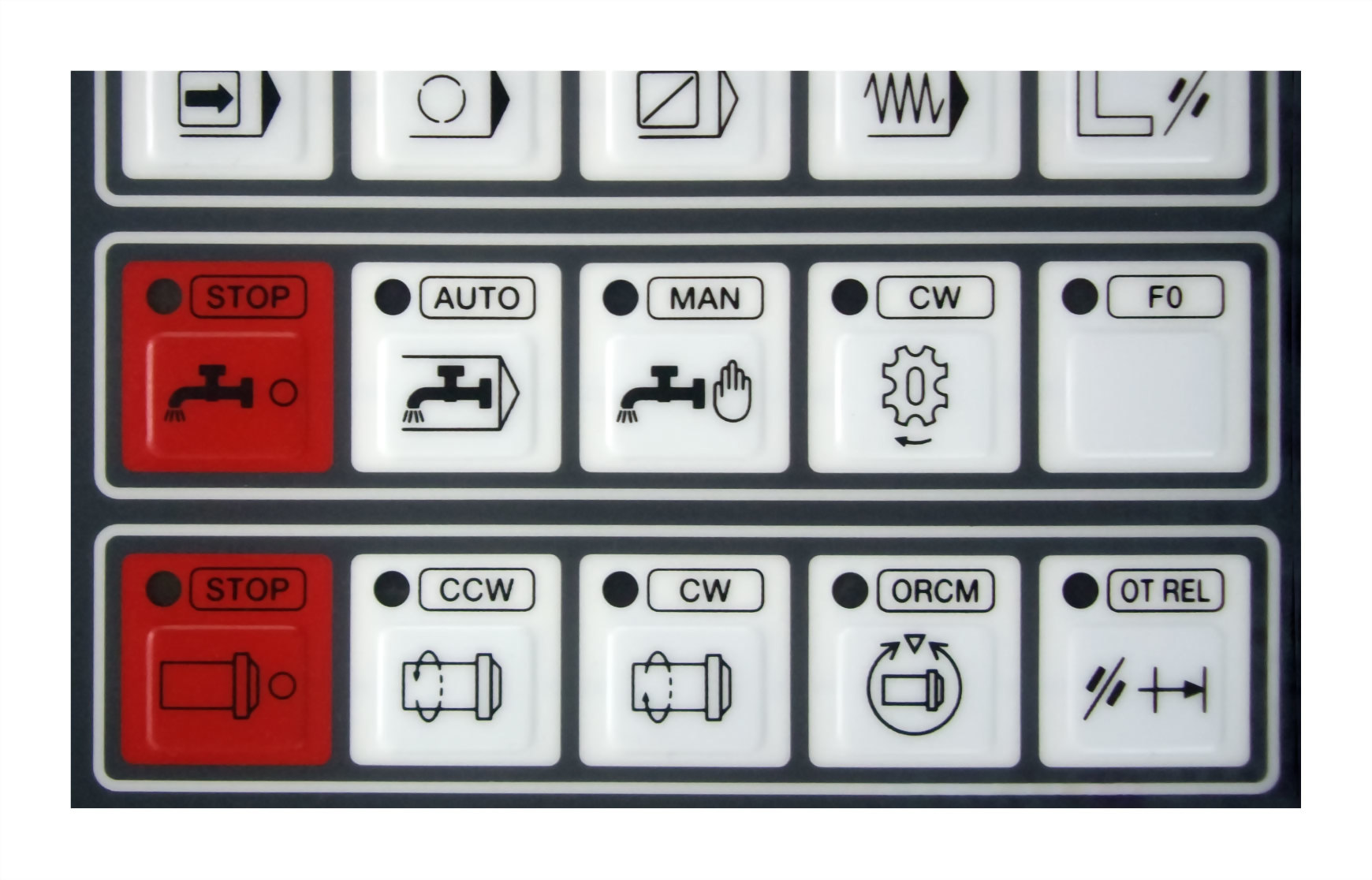

Membrane button switch details


It can be backlit or with LED indicator.

Full color, gradient color printing with Pantone Colour.

In addition to the square, membrane switches can also print in rectangle and other shapes.


Optional parts can flexible customization

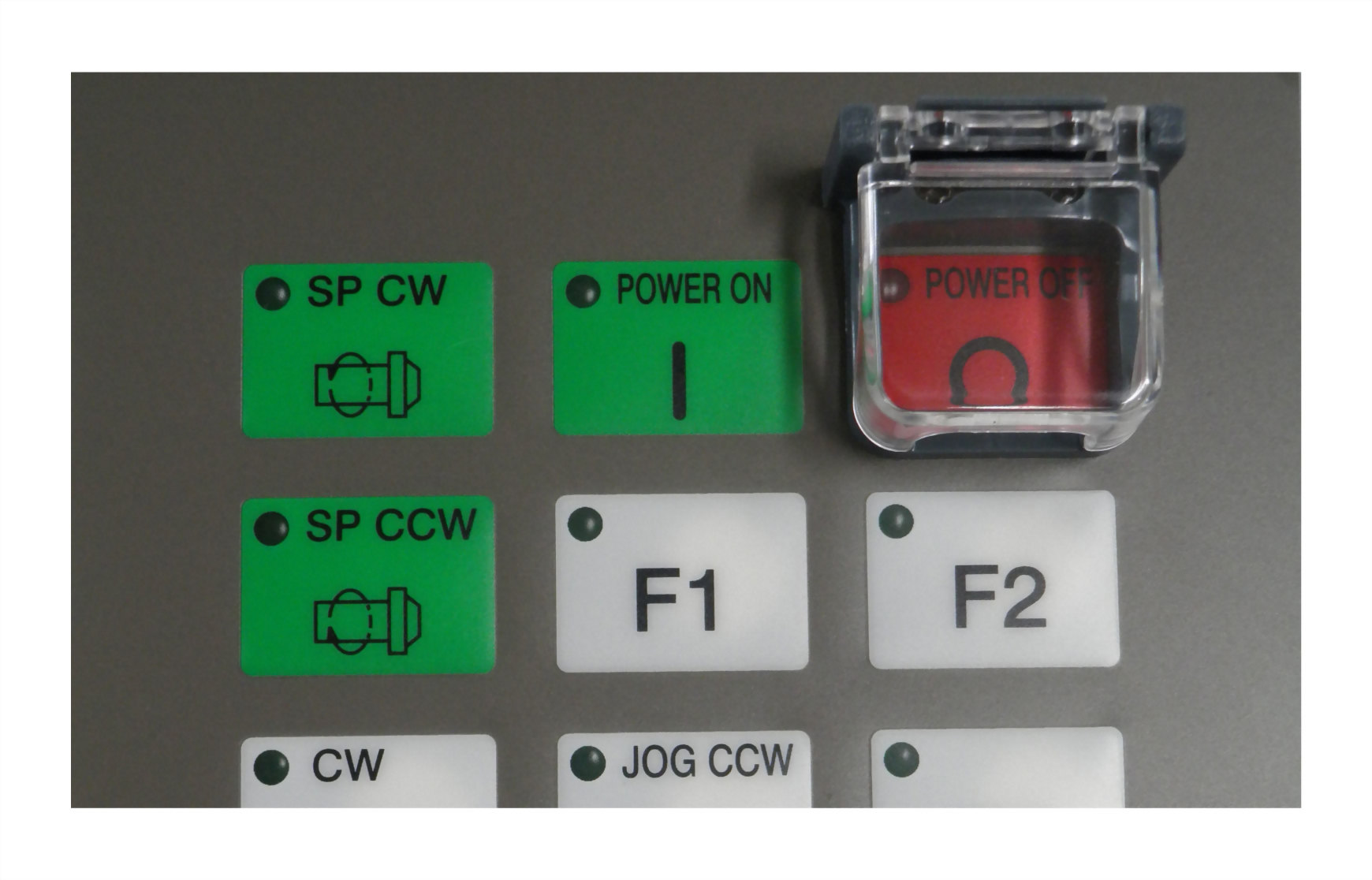

Push button switches have a protective cover to prevent mistaken touch.

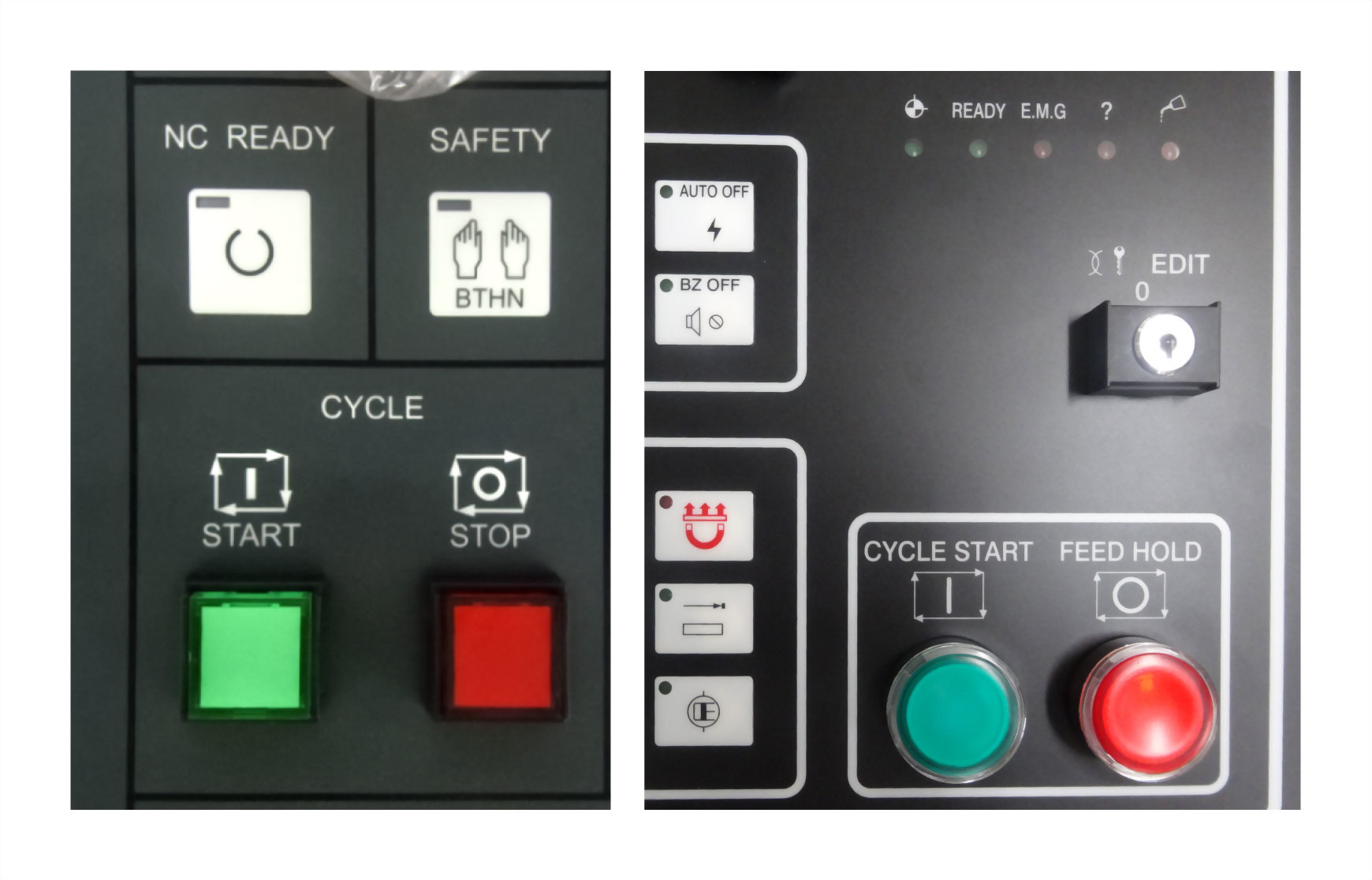

The shape of the push button includes round, square, rectangle. And additional printing illumination films as required.

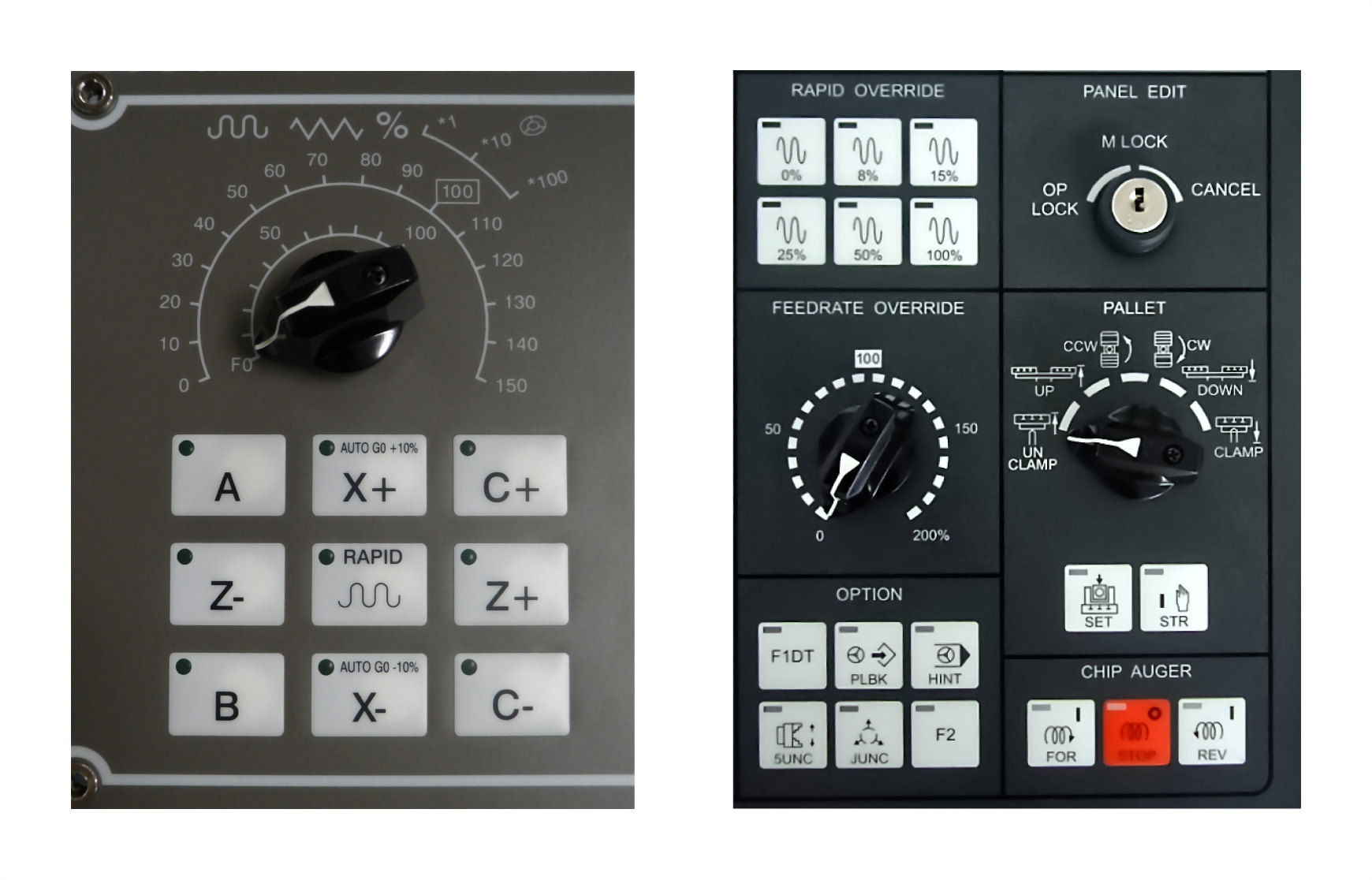

Multi-position selector switch, two or three position key selector switch.

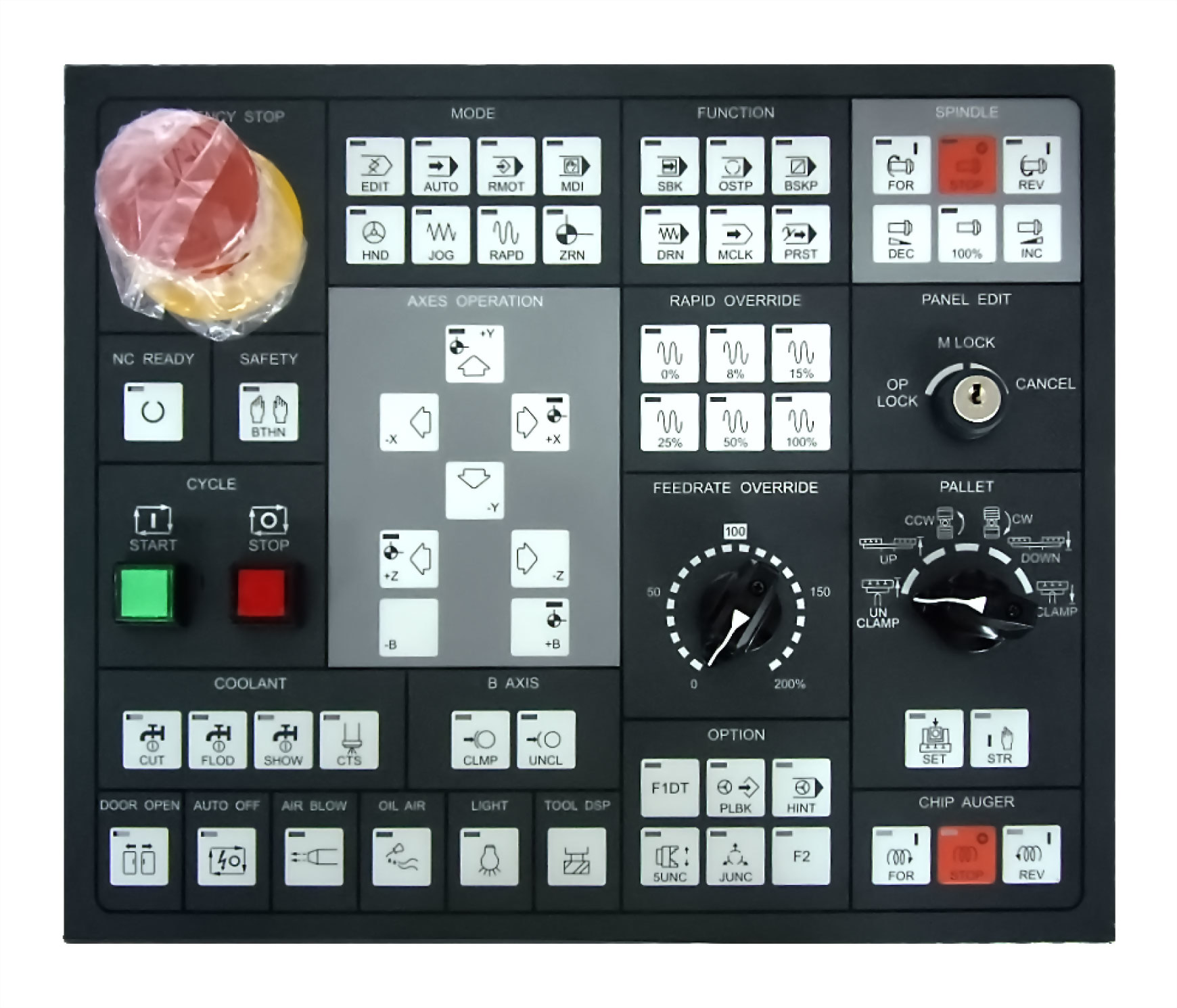

The control panel has diversity selections

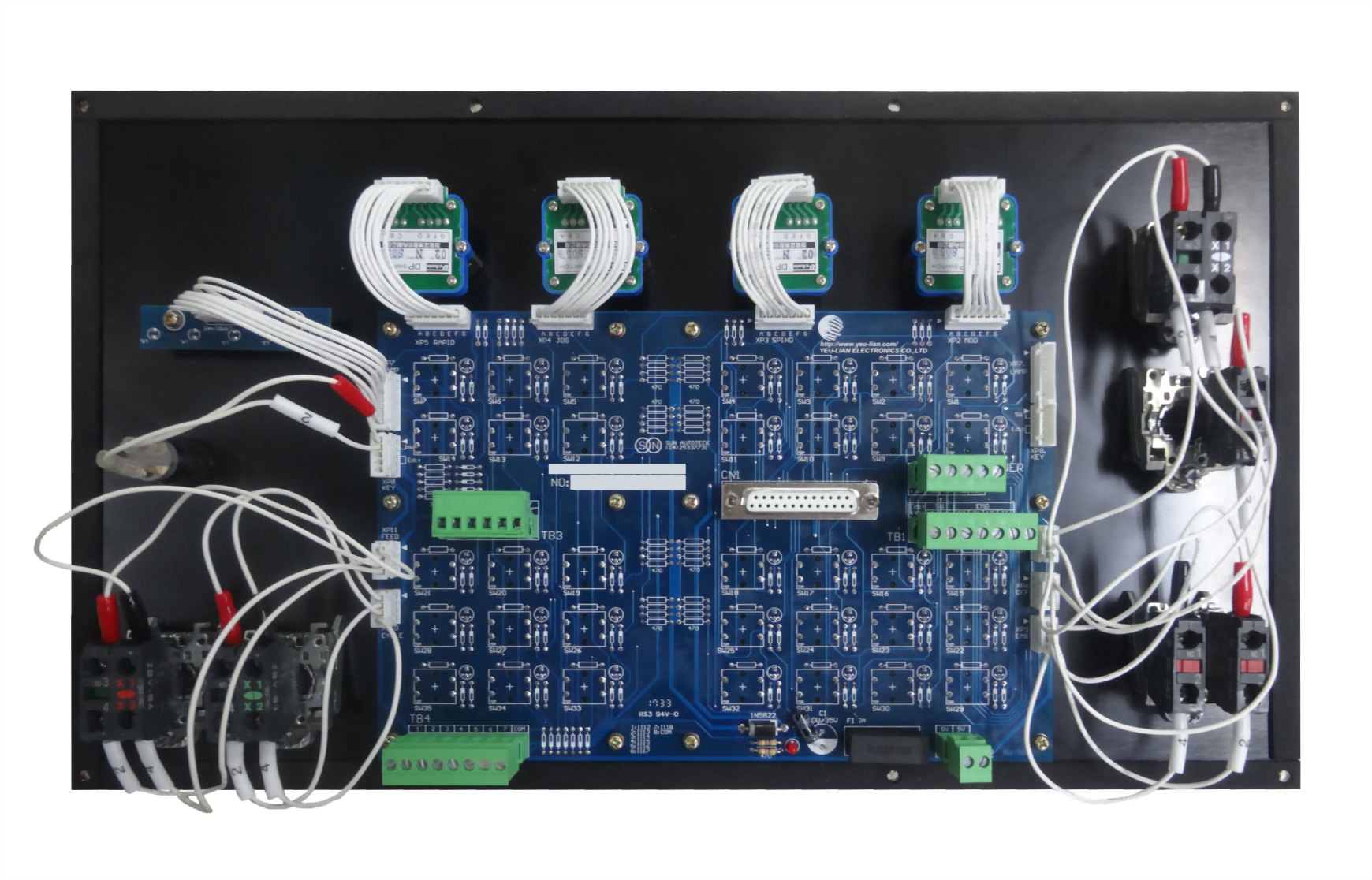

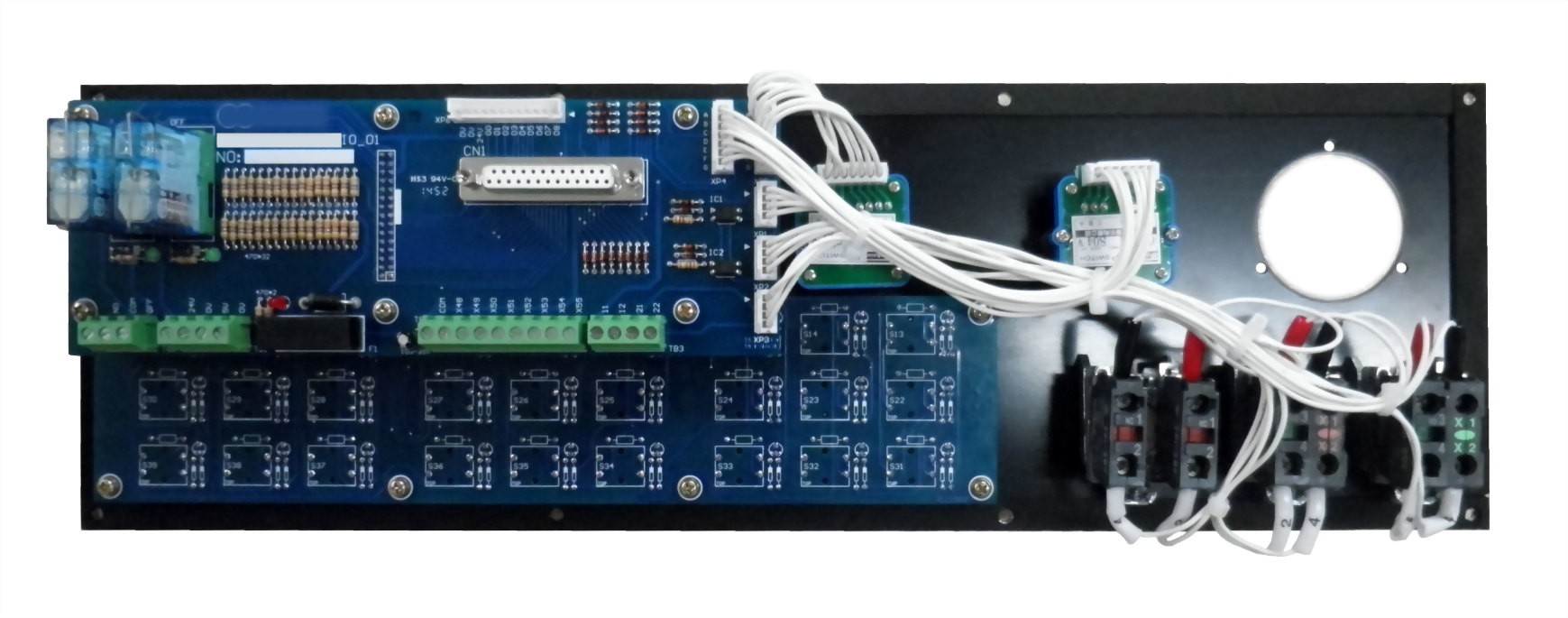

Various layout configurations, sheet metal and membrane size. Customized design by electric circuit functions.





We also provide panel encryption function, PLC program, circuit board customized service.

Other types of buttons

YEU-LIAN had designed many types of CNC machine control panel as customer-specific requirements. So far, currently used in various CNC machine tools such as lathes, milling machines, turning-milling machines, grinders, boring machines, multi-axis machines, compound machining centers. In addition to membrane button switches, there are crystal acrylic buttons, laser-engraved ABS waterproof buttons and many other types. We offer control panel IO wiring such as lock code control of encrypted wiring, coded point-to-point control, matrix scanning and dot matrix. Use our patented modules button keys can quickly complete the replacement and maintenance.


Full color printed crystal acrylic buttons

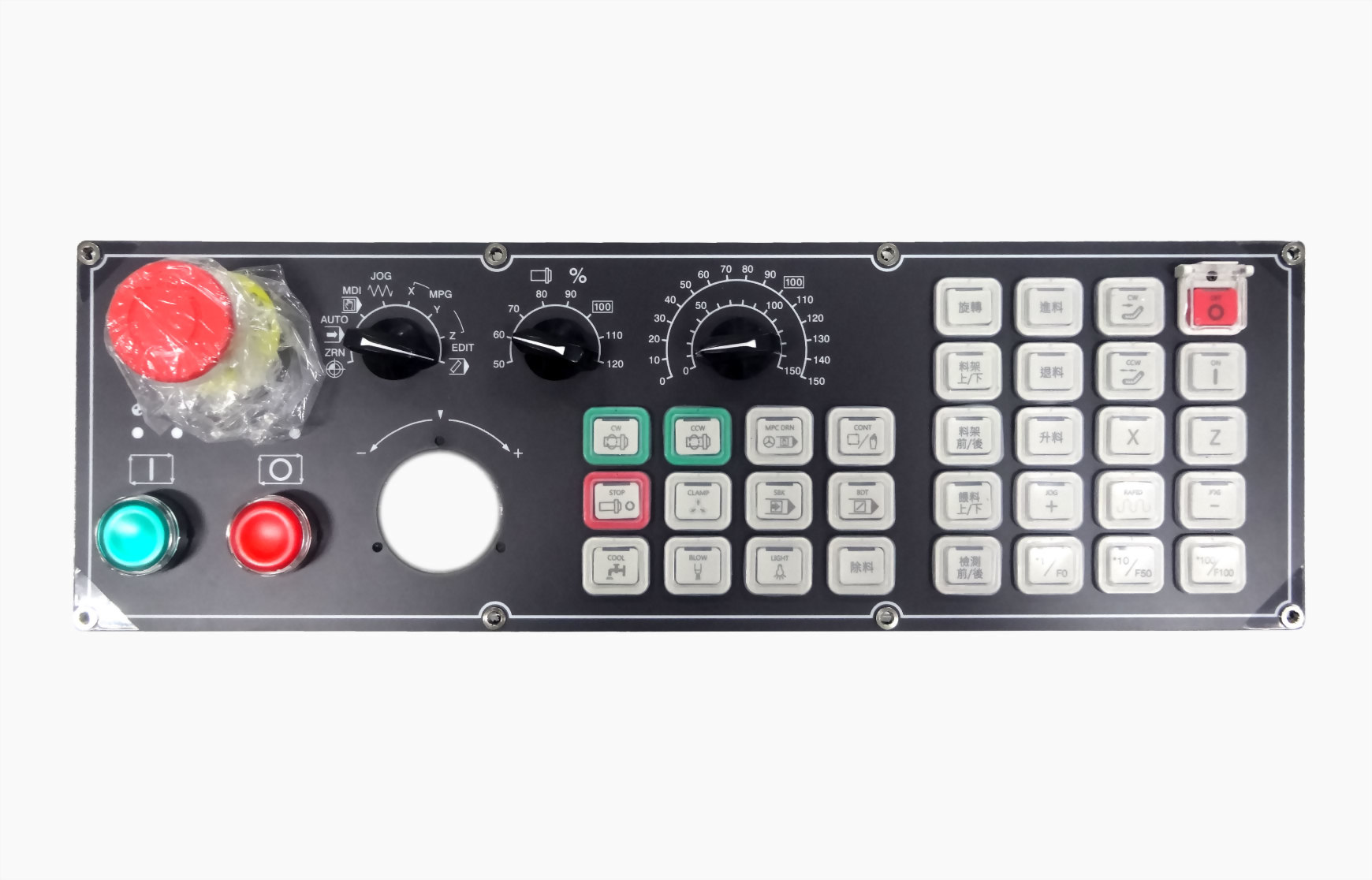

Laser engraved ABS plastic button switches

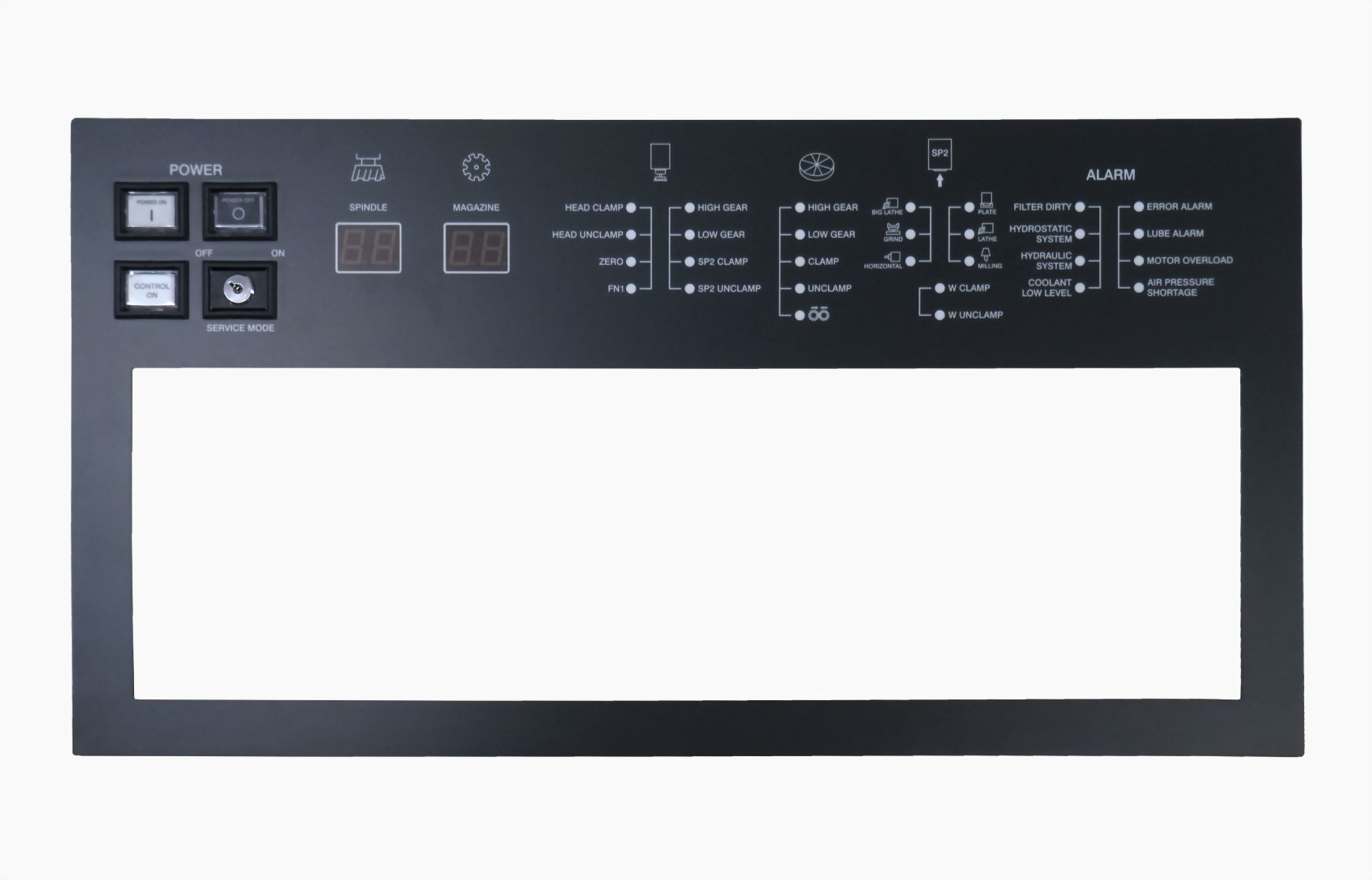

Control panel compatible with current operator panel

Laser carved keycaps, soft type cover guard


One year warranty. The limited warranty does not include failures due to abuse or accidental damage.
