Crystal Acrylic Button Switch Lathe Operator Panel

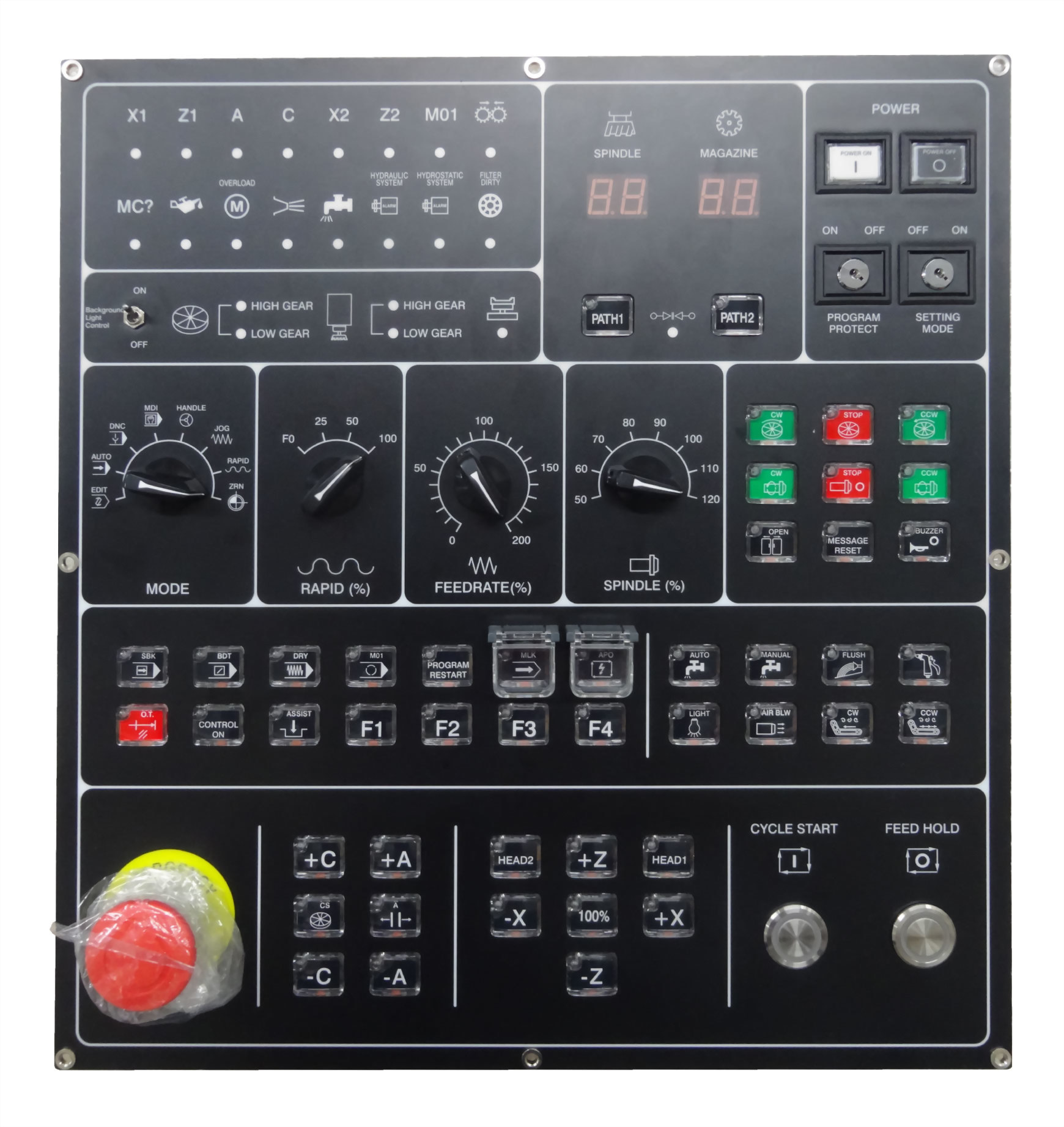

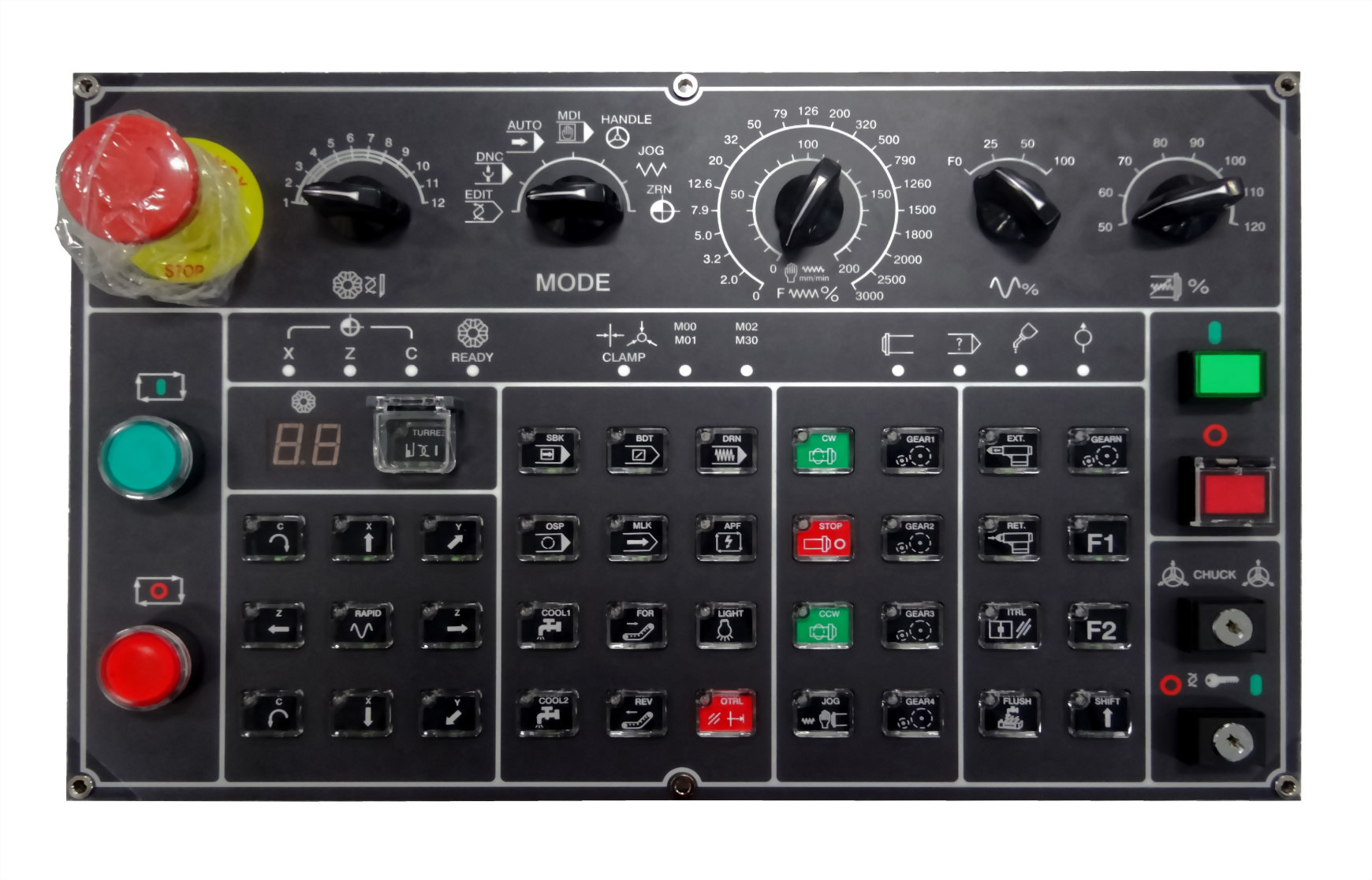

MITSUBISHI lathe, FANUC turning machine control panel
It can use for MITSUBISHI controller lathe operation panel, applicable systems: M70, M700, M80, M800, E68, E70. FANUC controller lathe operation panel applicable systems: 0i-MD, 0i-MATE, 0i-MF series.

The color of the membrane panel can select in multiple colors, or the hairline sheet metal as the panel. The legends and symbols of the function buttons can print according to the customer's drawing files (.jpg, .png, .dwg, .psd, .ai,. dxf.). You can also put the company LOGO and website URL on the front or circuit board. Patented modular acrylic button has the front disassembly design, easy to clean and replace. Water-resistant, oil-resistant, scratch-resistant from the front of the panel. The button switch supports RGB full-color printing, regular use is black, red, and green. Taking existing customers as an example, the output is blue color and white to increase the functional distinction of the panel. Various accessories such as blank button switches, button flush bezels, and switch guard (180° spring return). It is flexible, and particularly well-suited for customer-specific requirements.

The curved surface design of the acrylic crystal button is sleek and smooth to the touch and good texture. The button is very stable and vibration resists. It is suitable for the industrial environment. Shock resistance, vibration resistance, and avoid inadvertent operation (for OMRON specification). Actuating force is 2.55N, working temperature is -25°C to +70°C, mechanical life is more than one hundred thousand times.

MITSUBISHI, FANUC acrylic button switch lathe operator panel
FEATURES
  • Designed for FANUC controllers, MITSUBISHI controllers use.
  • CNC lathe machine-oriented.
  • Patented modular acrylic button design for space-saving is ideal for arranging arbitrarily
  • RGB color flush bezel available. Bright and clear backlight mode.
  • The printing color and graphic can select arbitrarily
  • The front side replaceable design
  • Integrated design of spindle load table
  • Point to point type, matrix type, optimized circuit integration.
  • Consider ergonomic design and optimize operating experience.
  • The code switch series has multiple positions, and can output such as point-to-point, binary, anti-binary, gray code, anti gray code coding.
  • IP67 waterproof and dustproof (must match the environment of the customer's electronic cabinets).
  • Integrated wiring of MPG pendant handwheel
  • CE
  • ROHS(Lead-free, environment friendly)
  • One year guarantee under normal use.
  • Sheet metal size can customize according to needs.

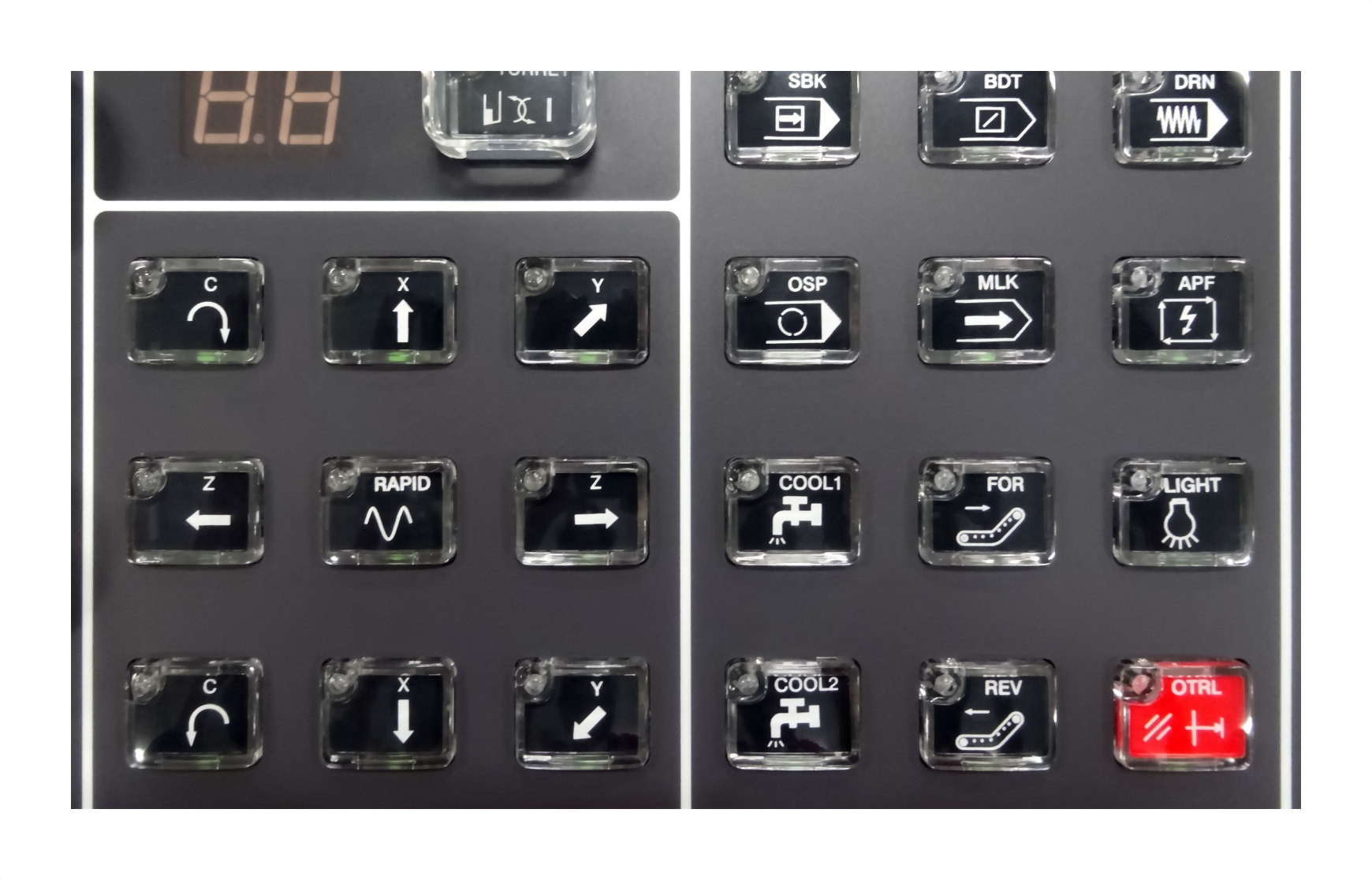

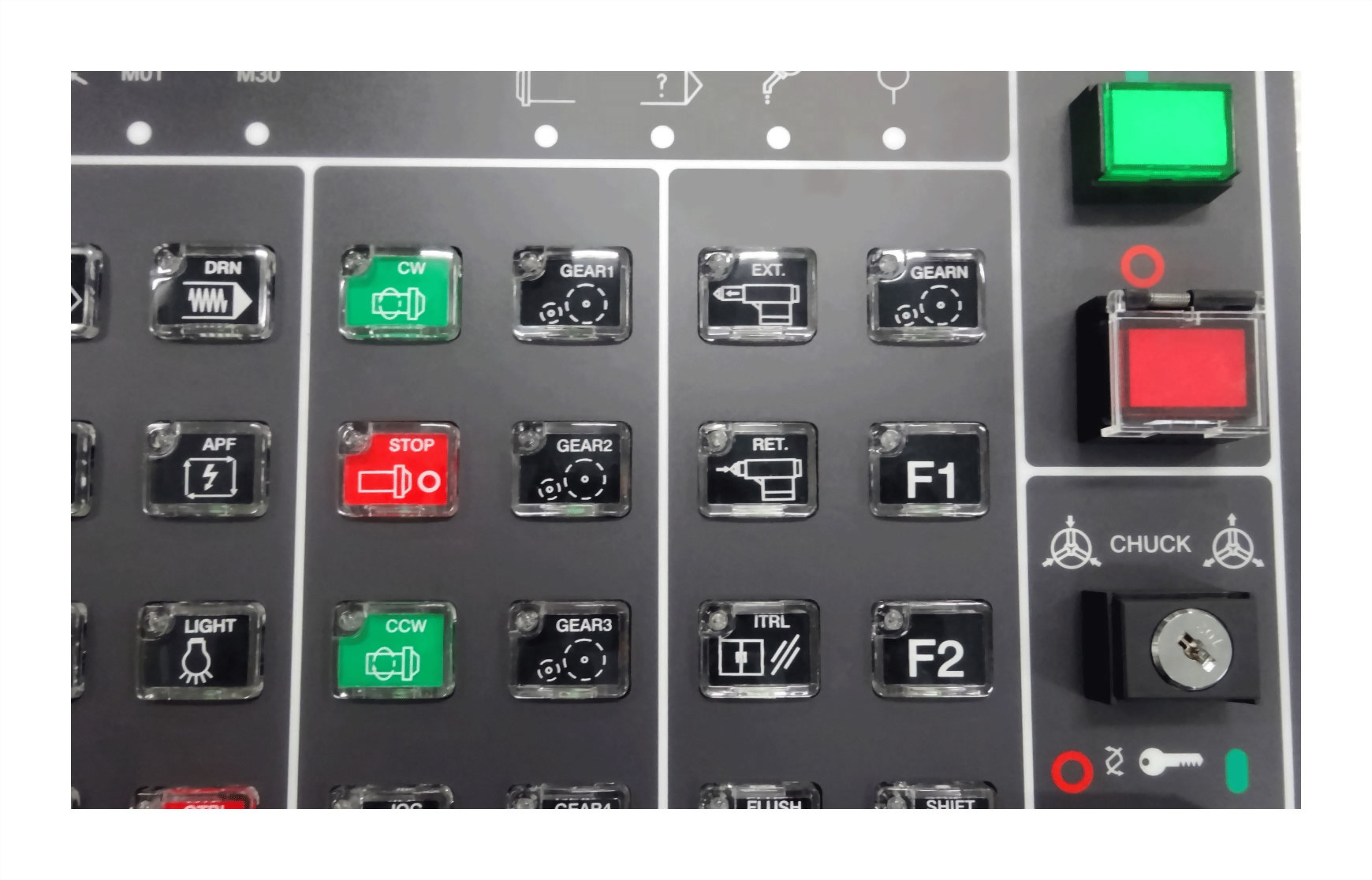

Crystal transparent button switch details


RGB full-color output, clear printing on the keycaps, free to arrange various switch combinations.

The backlight panel and LED pilot lights enhance the brightness of the panel and increase the convenience of use.


Optional parts can flexible customization


The 7-segment display has a combination type (0.39 inch/0.56 inch), a fixed type (0.56 inch a set of two digits), and push button illumination in various shapes for optional.

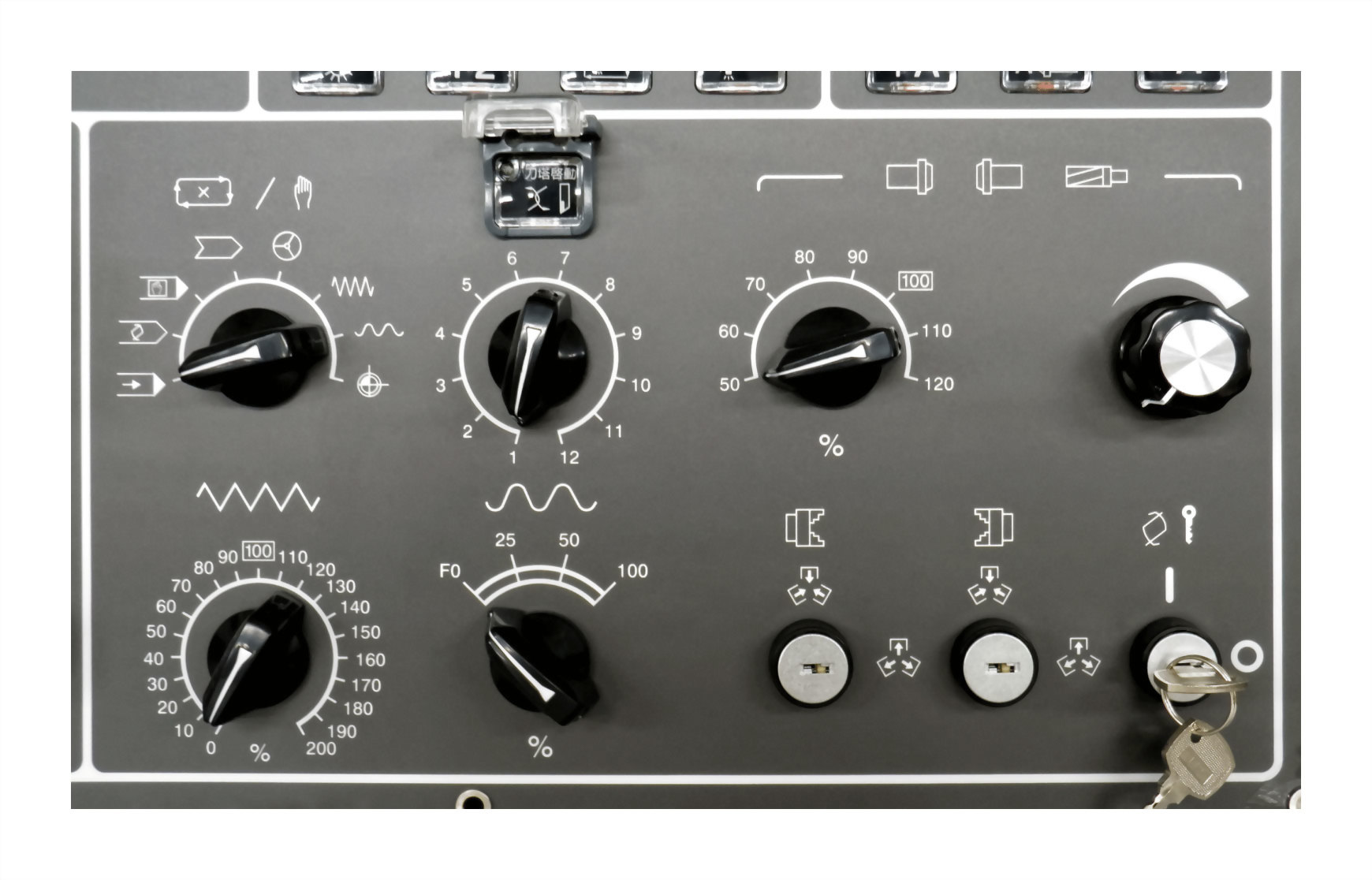

Digital rotary switches are available in 13.85° H series, 15° J series, 30° N series and VR series with any number of segments, and a variety of knobs are available.

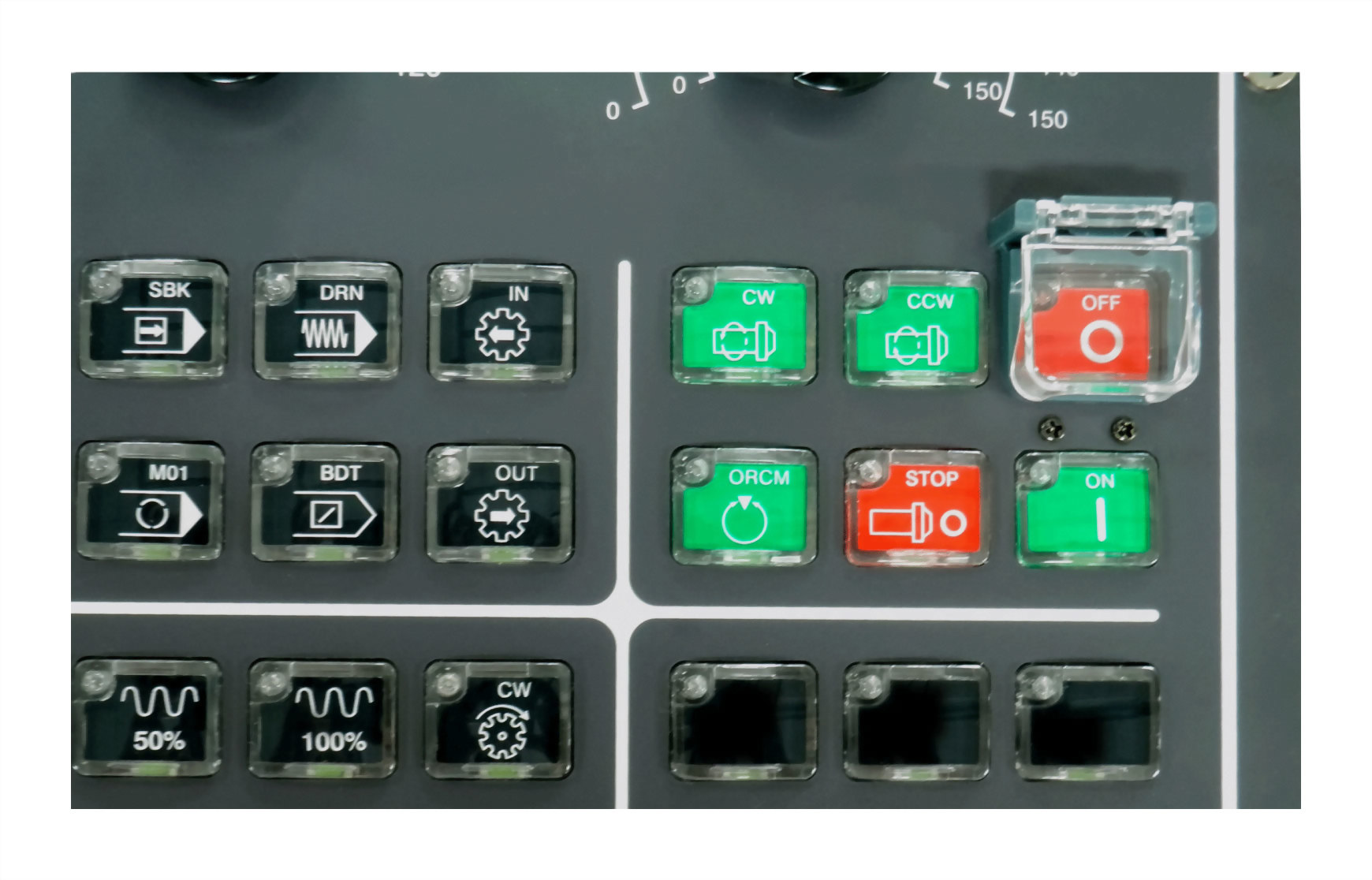

Reserved blank switch, the front disassembly without tools make replacement easy, and the push button switch protective cover has 180° spring return.

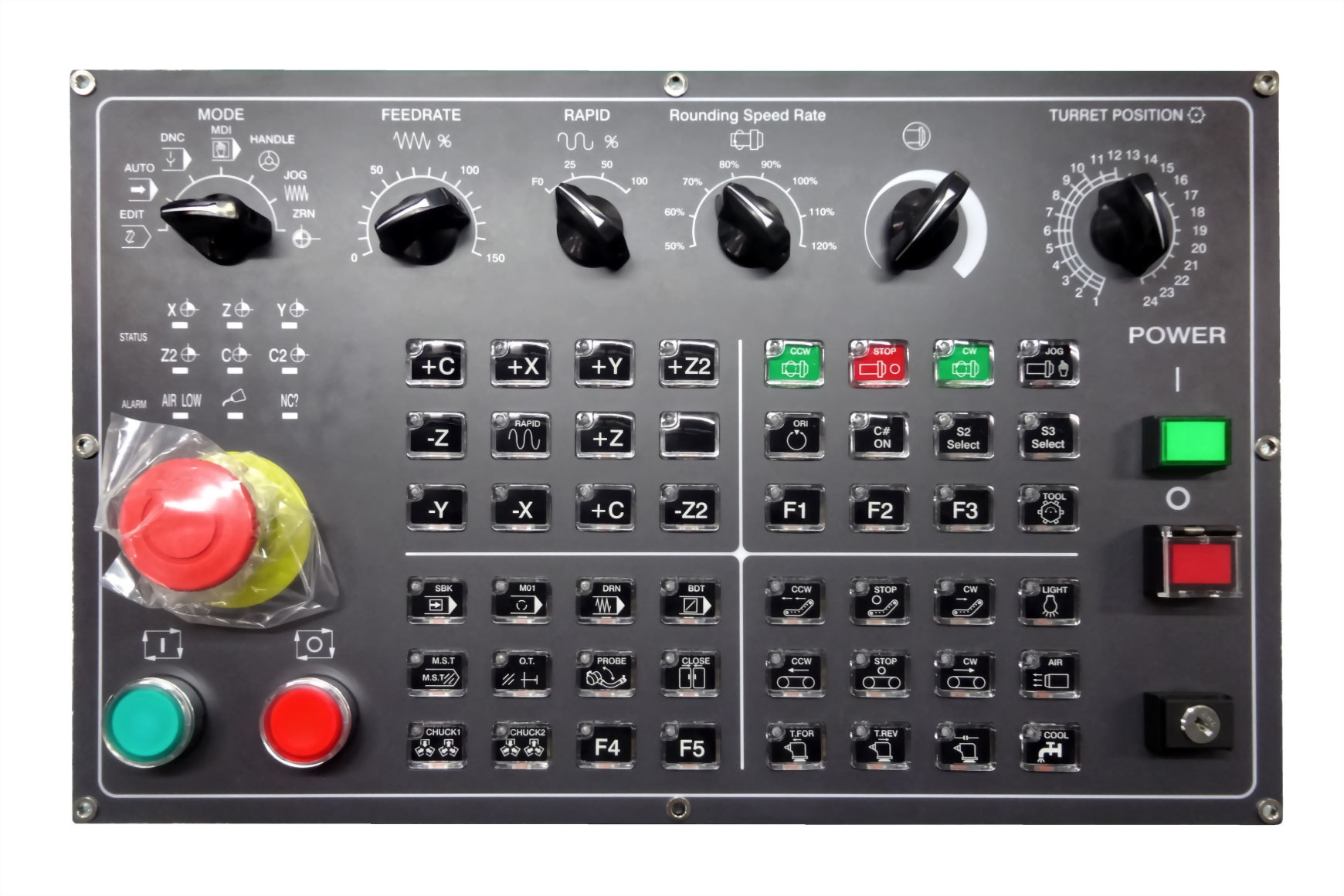

The control panel has diversity selections


Various layout configurations, sheet metal and membrane sizes can adjust according to the functional needs. Supporting industrial CNC machine tools such as lathes, dual lathes, milling machines, grinders, gantry, multi-axis machines.

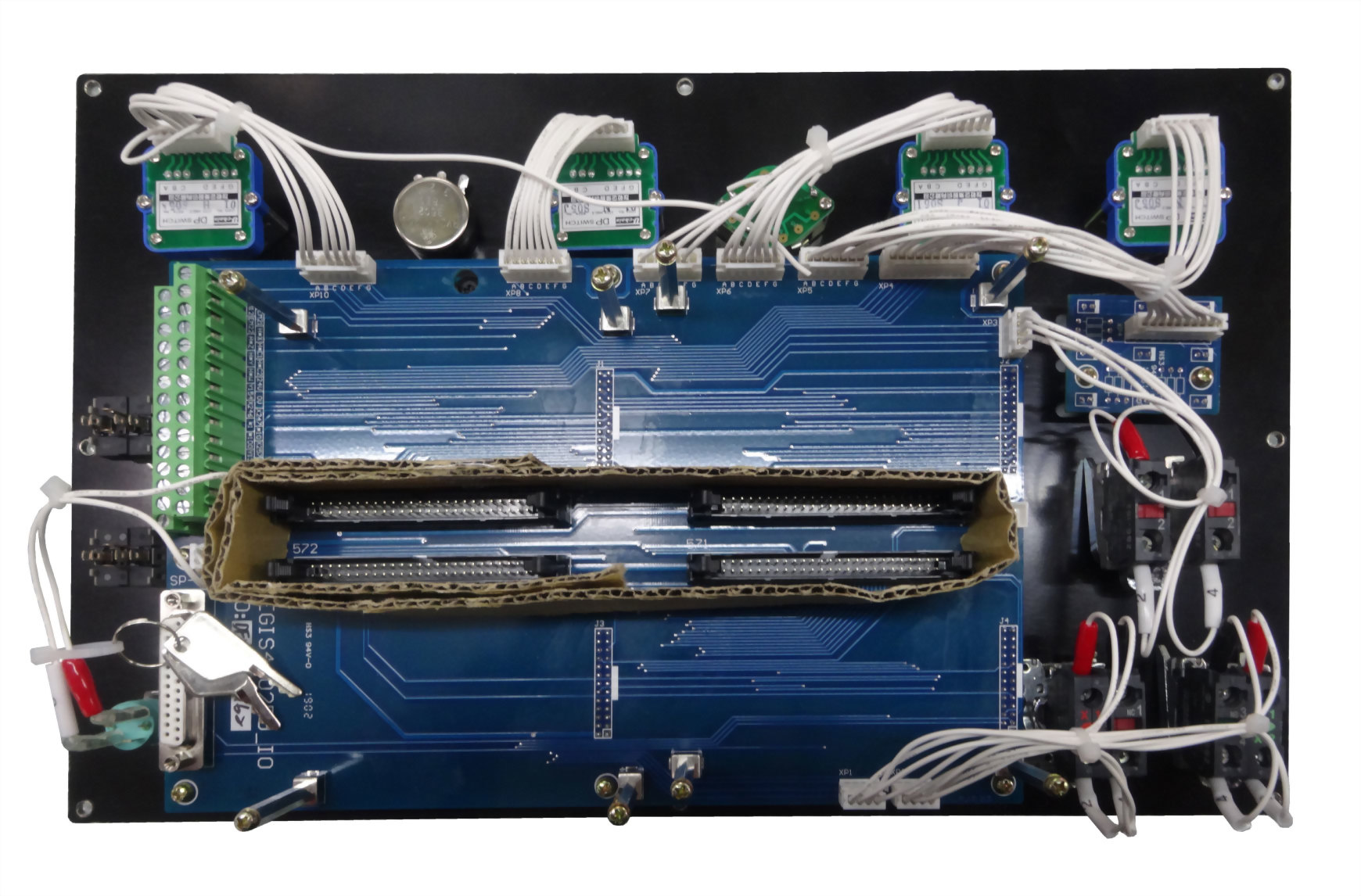

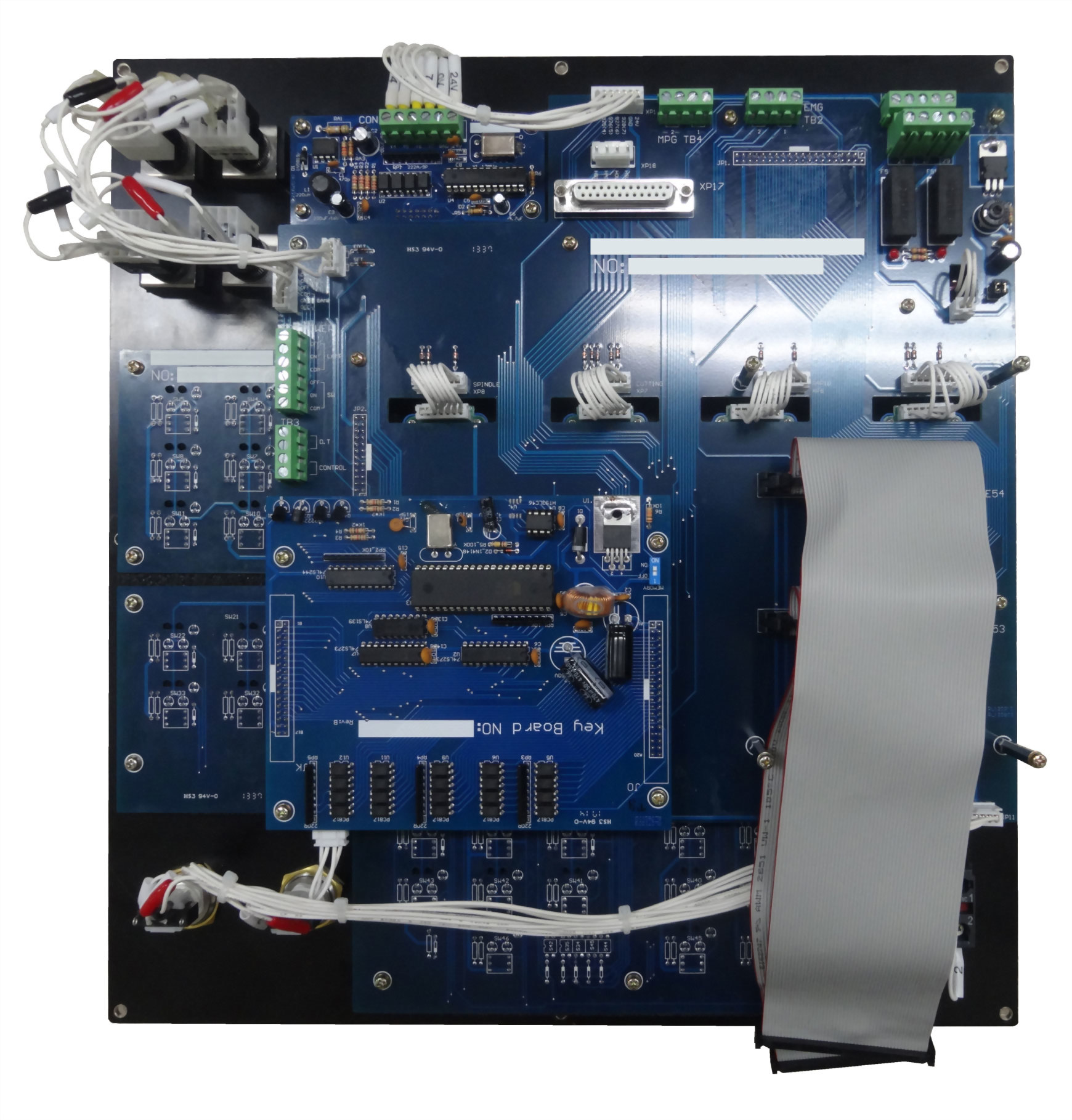

Provide customized services such as panel encryption function, PLC program, circuit board manufacture.The replacement of current used panel, adaptation, expansion.

Other types of buttons

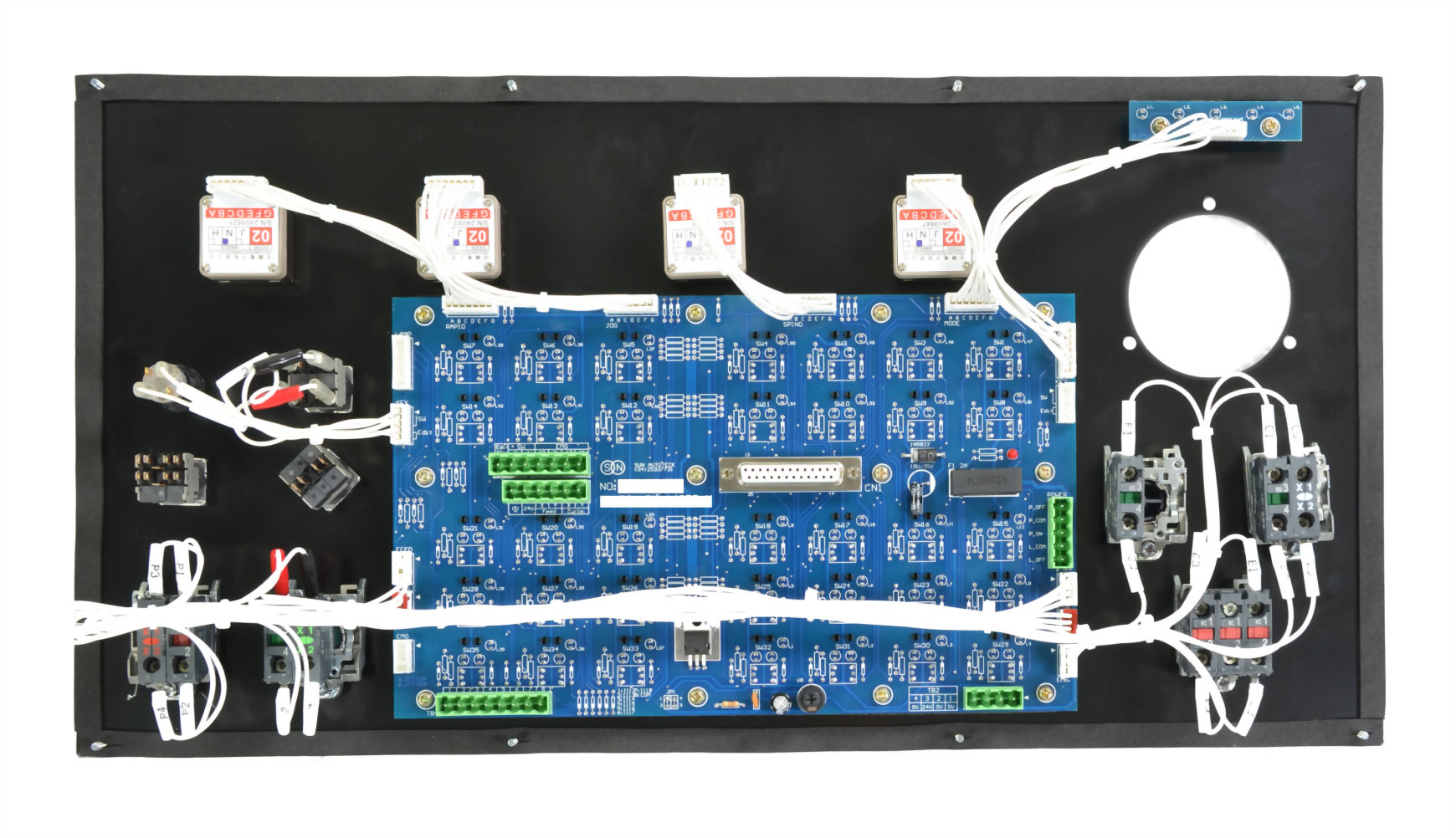

YEU-LIAN had designed many types of CNC machine control panel as customer-specific requirements. So far, currently used in various CNC machine tools such as lathes, milling machines, turning-milling machines, grinders, boring machines, multi-axis machines, compound machining centers. In addition to crystal acrylic button switches, there are membrane button switches, laser-engraved ABS waterproof buttons and many other types. We offer control panel IO wiring such as lock code control of encrypted wiring, coded point-to-point control, matrix scanning and dot matrix. Use our patented modules button keys can quickly complete the replacement and maintenance.


Other types of crystal acrylic buttons have anti-mistaken touch frame

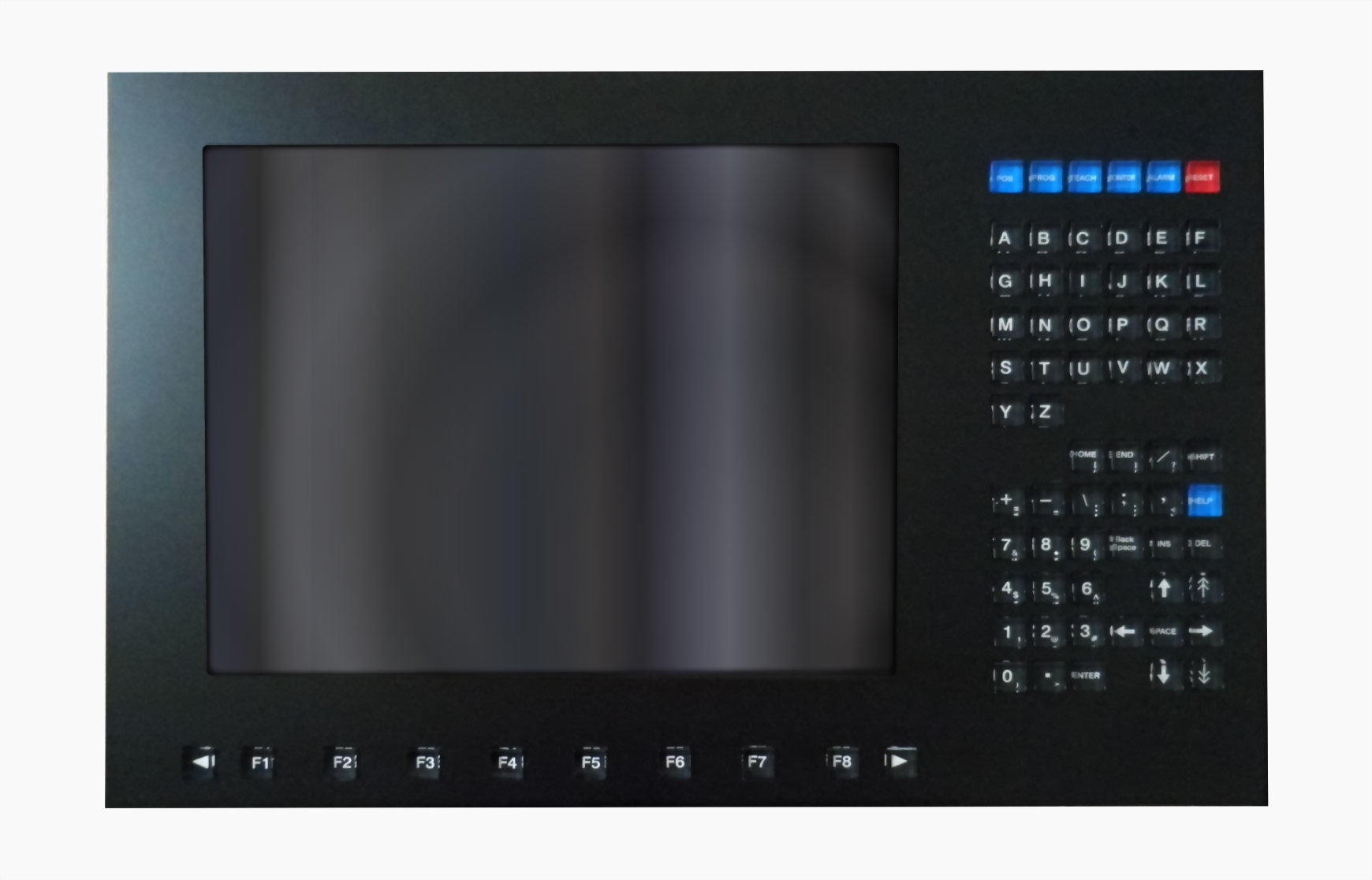

Concave acrylic keyboard and embedded computer, screen

Laser engraving keycaps, clear printing and neat appearance

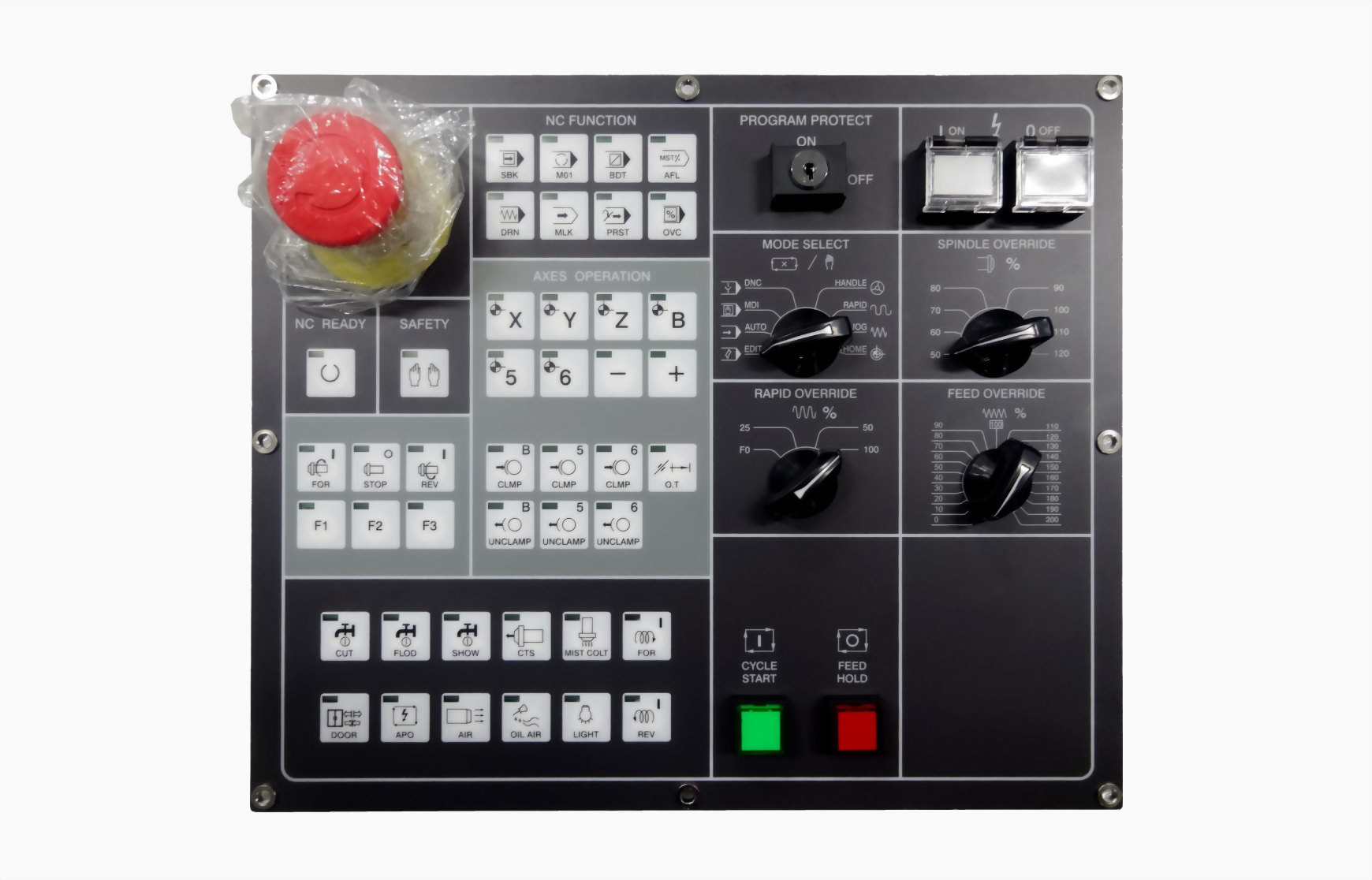

Membrane panel can widely use in various shapes and sizes


One year warranty. The limited warranty does not include failures due to abuse or accidental damage.
