Customized Multifunctional Modular MPG Pendant Handwheel

Multifunction, customize, modular design: ATOMS P9 handy MPG pendant series
Appearance
The case body has a special concave-convex design that fits the shape of the hand and is convenient for grasping. The P9 handheld MPG pendant can integrate many functions into one. The selection switch and the button switch can configure to the requirements. The highly customized can apply to various CNC machine tools, like lathes, milling machines, grinders, and five-axis machine and integrated processing machines. You can choose an integrally formed handle on the top, or use the permanent magnet on the back case. The special MPG holder bracket has two materials, plastic and metal. The users can effectively use the working space and flexibly use to control mechanical equipment.

Customization
The P9 handwheel MPG pendant series is for machine-oriented products, can freely design and configure. You can install up to six selector switches, and supports multiple codings: point-to-point, binary, and gray code. The axis selection can be set to 3, 4, 5, 6 and 7 axes, and the multiplication selection can be set to X1, X10, X100, X1000. Nine function buttons, and other special switch buttons are optional. Customized special modules can meet your needs from the simple function to the complex multi-function.

Performance
The case body is made of waterproof and dustproof material. Strong and impact-resistant, good heat resistance, and high stability. It can use in high temperature, dusty, electrostatic interference factory environment and site operations. The P9 handheld encoder MPG controller has high compatibility and a variety of output interface types. It can use with MITSUBISHI, FANUC, SIEMENS, and PLC controllers. We provide related MPG spiral cable and joint welding services, which can easily install in the electric cabinet of existing equipment and on the machine tool.

The MIT high-quality rotary encoder has a circuit protection mechanism. The manual pulse generator series can withstand input voltages from DC5V to DC12V, anti-electromagnetic interference. Also anti-reverse voltage protection avoids wiring errors. Comply with European and American market safety regulations, an EMG emergency stop switch can install to ensure safe disconnection. The 72mm large-scale MPG metal dial is gorgeous and has good texture. The center point is equipped with an indicator. The scale numbers on MPG are clear and does not wear or fade. It has a fast output response without signal lost. The components can replace separately. It is convenient for maintenance. It is ideal for use as a cost-effective, saving time and cost.

Optional: multi-style emergency stop switch (rotary or pull type), enable switch (available on left side or both sides). Square function push-button can choose to have indicator light or not. There are buttons and additional functions can defined by users to the requirements. YEU-LIAN provides new product design and manufacturing ODM, or OEM manufacturing to replace existing products. The name plate and dial can print with full-color printing icons or laser the LOGO text.

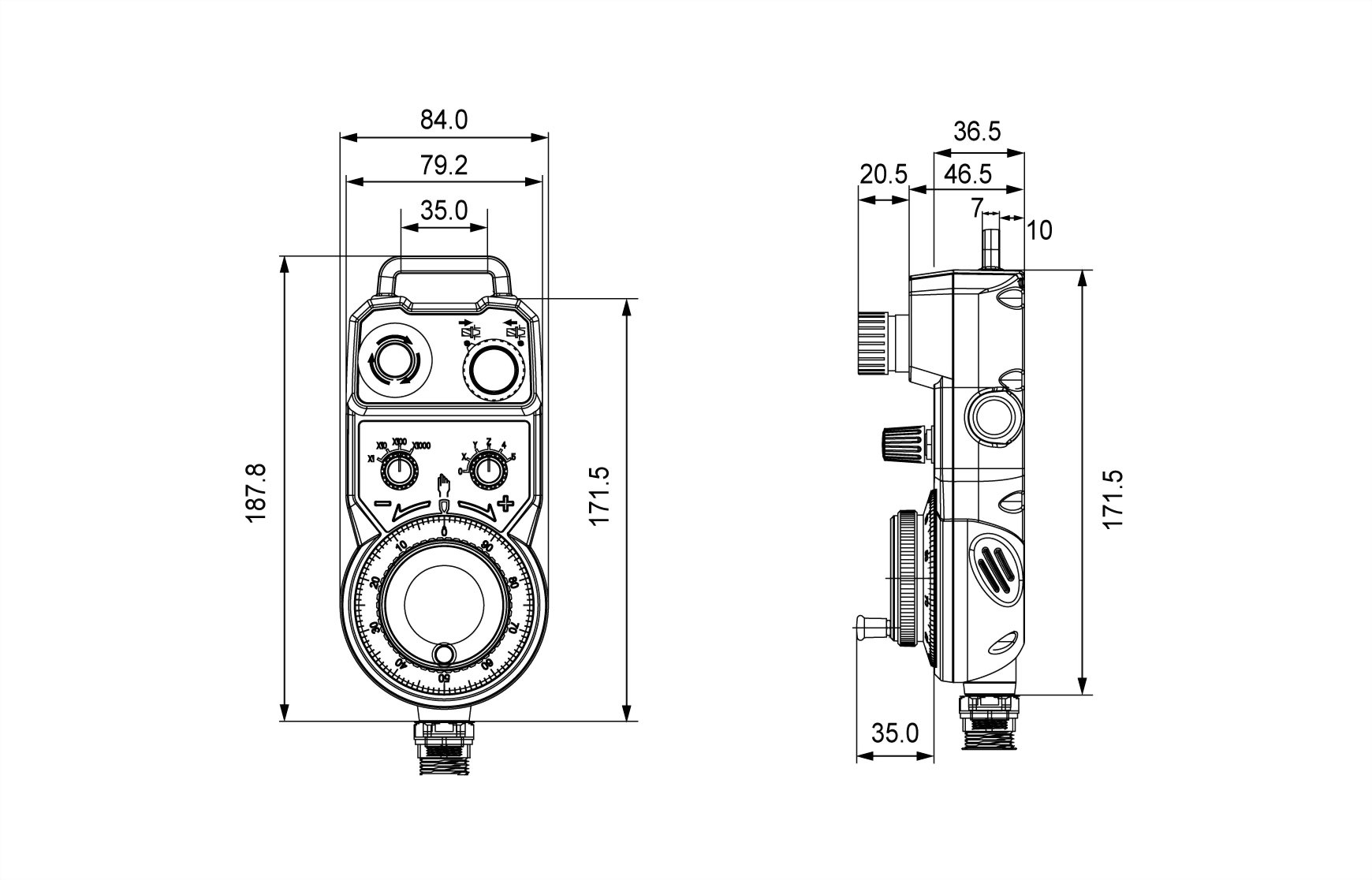

ATOMS P9 series configuration reference
ATOMS P9 series configuration reference
The ATOMS P9 handy MPG series are mainly designed with a high-mix low-volume manufacturing. The main unit has MPG, selector switch, pushbutton switch, emergency stop, enable switch, spiral coil cable, and other parts can highly customize. We also provide customers with more diverse choices and more precise operation applications to meet the use of various CNC machine tools.

The minimum order quantity for the customized product is 10 pieces. For more information, please contact us.
FEATURES
  • To meet the needs of multi-functional customization with modular design.
  • Impact-resistant material case to extends the product service life.
  • DC5V to 24V full voltage input, anti-reverse voltage protection and electrostatic discharge ±10KV design.
  • Built-in permanent magnet on the back, for flexibly use.
  • The bracket material: metal, plastic.
  • Standard with 3-meter PU spring wire and power indicator light.
  • Coding type: binary coding, anti-binary coding, Gray coding, anti-Gray coding and point-to-point.
  • Metal MPG handwheel dial, the scale numbers are clear and easy to read.
  • Optional: emergency stop switch, enable switch(starter switch), LED indicator light.
