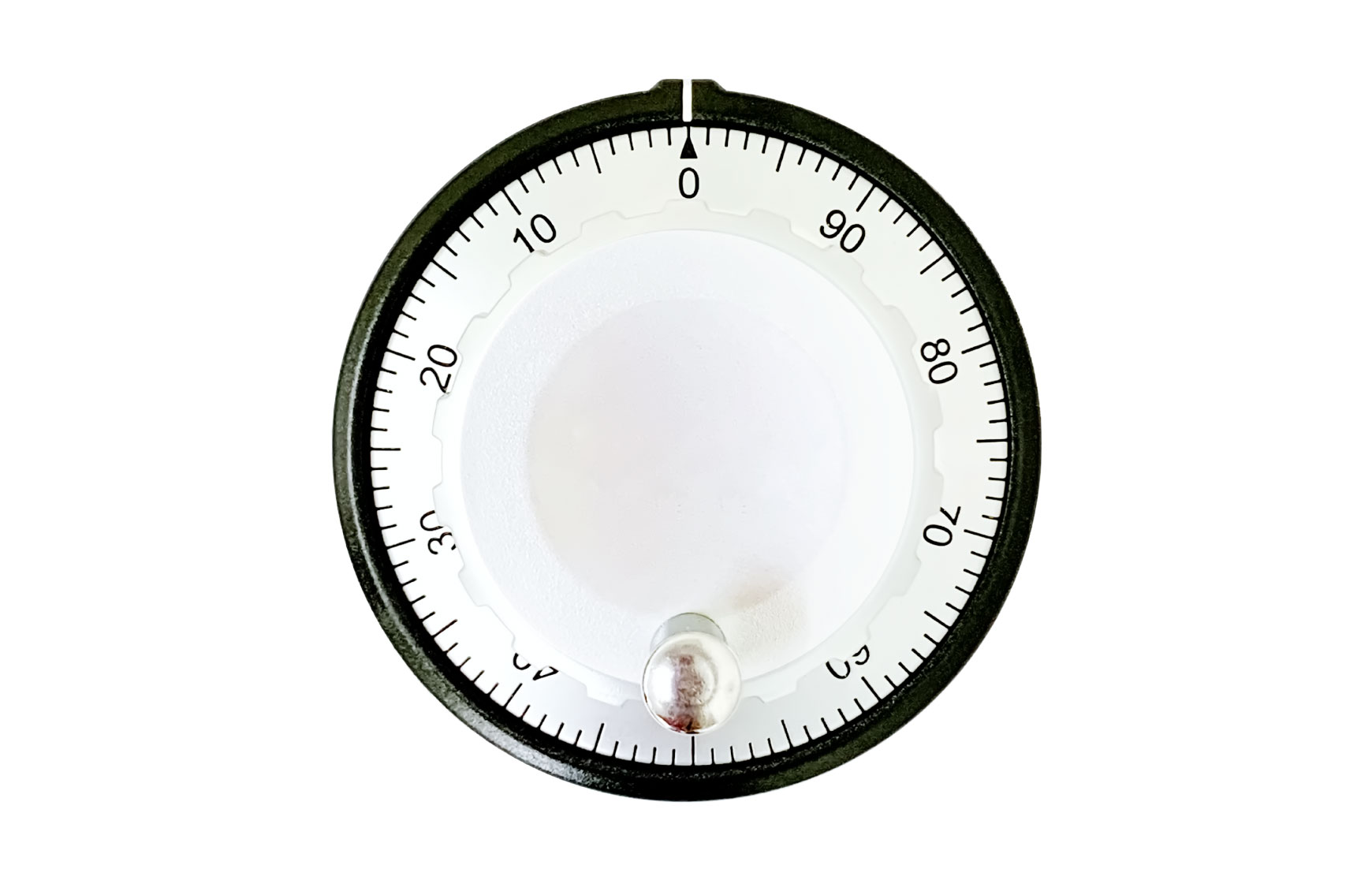

72mm CNC Manual Pulse Generator MPG

Reliability, light-weight, impact-resistance: MPG handwheel encoder
Appearance
7 series electronic handwheel-medium type, the outer diameter of the dial is 72mm, and the overall thickness (including the handle) is 40.7mm. The mounting hole is only 14.7mm, with the three-point M4 nut to fix. Thus, the MPG is easy to install and maintain, which can save costs. It is suitable for CNC machine pendants, CNC lathes, milling machines, and other industrial machines in different sizes.

Customization
MPG handwheel PPR can choose 100 pulses/100 revolutions, 25 pulses/100 revolutions. Types of MPG electric circuit include line driver, resistive (330Ω, 2.2kΩ), open circuits (i.e. open collector). The input voltage DC5V, DC12V, DC24V, or customized for requirements. The output voltage 5V, or open collector (current output type), which can withstand a maximum of Vcc-0.5V (above differential 3.5V), and a minimum of less than 0.1V. Applications for many controller systems, such as Japanese MITSUBISHI, FANUC, European SIEMENS, FAGOR, domestic LNC, SYNTEC. The manual pulse generator can use in handy MPG pendants, operation panels, or directly on the CNC machine.
MPG 7 series 72mm
Performance
MPG 7 series manual pulse generator, the dial material is specially processed. The combination of chrome zinc metal and ABS to achieve impact resistance and light weight. The integrally formed texture dial has a unique metallic luster, beautiful and fashionable appearance. The scale numbers are meticulous, which can clearly identify and convenient to operate. The manual pulse generator series (i.e. rotary MPG encoder) can resist static electricity ±10KV. DC5V to 24V full voltage inputs. Forward and reverse current input protection and other circuit protection mechanisms. Therefore, the misconnection of the wire will not burn out. It is easy to use and maintain, and reduce the costs.

The handwheel pulse encoder has precise parameter settings, fast output response, 600RPM instantaneous speed without any signal lost. The MPG performs efficiently without high cost, you can benefit from it. The service life is more than 3 million revolutions. It is suitable for a variety of industrial environments. The manual pulse generator series is widely used in CNC MPG pendant controller, machine control panel, and CNC machine tool.

Optional: The MPG dial can customize with company LOGO, special text and icons, by using laser engraving or full-color printing. As long as give us the graphics files (.jpg, .png, .dwg, .psd, .ai, .dxf, etc.).

Manual Pulse Generator Encoder (back) Manual Pulse Generator Encoder (side) Manual Pulse Generator Encoder (mounting hole)



MPG Major parameters
Input Volt Volt Output Max. Freg. Resp. Max. Output Current Tr/Tf Time Working Temp. Storing Temp.
DC5V
|
DC24V 		High: ≧Vcc-0.5V
(Line Driver ≧3.5V)
Low: ≦0.1V 		5KHz 20mA MAX ≦1µs -10°C
|
60°C 		-20°C
|
70°C
Max Power Current Start Torgue Axis Load Max. Speed Rotate Weight Protection
80mA MAX 1.6
|
6.0x10-2N,m 		Axial: 9.8 N
Radial: 16.6N 		Inst. 600RPM
Cont. 200RPM 		Over 3 million
times rotation
(300 RPM) 		≦50g
(Not include dial) 		Resist of ESD±10KV
IP65/CE

MPG Electric circuits
Line Driver(D)
Pull-up(R)
Open Circuit(O.C.)

Standard specifications
NO. Model Application Specifications
1 1D5 SIEMENS 100PPR / in 5-24V / out 5 V / Line Driver
2 1R5 FANUC 100PPR / in 5-24V / out 5 V / Pull-up (330Ω)
3 2R5 MITSUBISHI 25PPR / in 5-24V / out 5 V / Pull-up (2.2KΩ)
4 141 Industrial type 100PPR / in 5-24V / out 5-24V / Open Circuit
5 1R1 Industrial type 100PPR / in 5-24V / out 5-24V / Open Circuit (2.2KΩ)
6 241 Industrial type 25PPR / in 5-24V / out 5-24V / Open Circuit
7 2D5 Industrial type 25PPR / in 5V / out 5 V / Line Driver
8 161 Industrial type 100PPR / in 5-24V / out 5-24V / Line Driver

We provide professional consultation and sample trials. MPQ.
One year warranty. The limited warranty does not include failures due to abuse or accidental damage.
FEATURES
  • Scale-dial outer diameter: 72mm
  • The weight is light but impact resistant, and it is convenient to use.
  • The metal texture has a nice appearance and practical value. The scale numbers are clear and does not fade.
  • The front IP65 grade is dust-proof, water-proof and oil-proof, in line with CE regulations.
  • Excellent tactility, good operating feeling, fast output response without losing any signal.
  • Optical encoder, non-contact detection, high precision and reliable output signal.
  • Circuit protection mechanisms such as full voltage input, reverse power polarity protection, anti-static interference.
  • The service life is more than 3 million revolutions.
  • Simple fixed, easy DIY installation and replacement.
  • A variety of output types, can customize according to controllers (Japanese, European, domestic)
  • The dial can laser engrave and full-color printing, with a wide range of applications.
  • Applications: handy MPG pendants, operation panels, or directly on the CNC machine
Dimensions

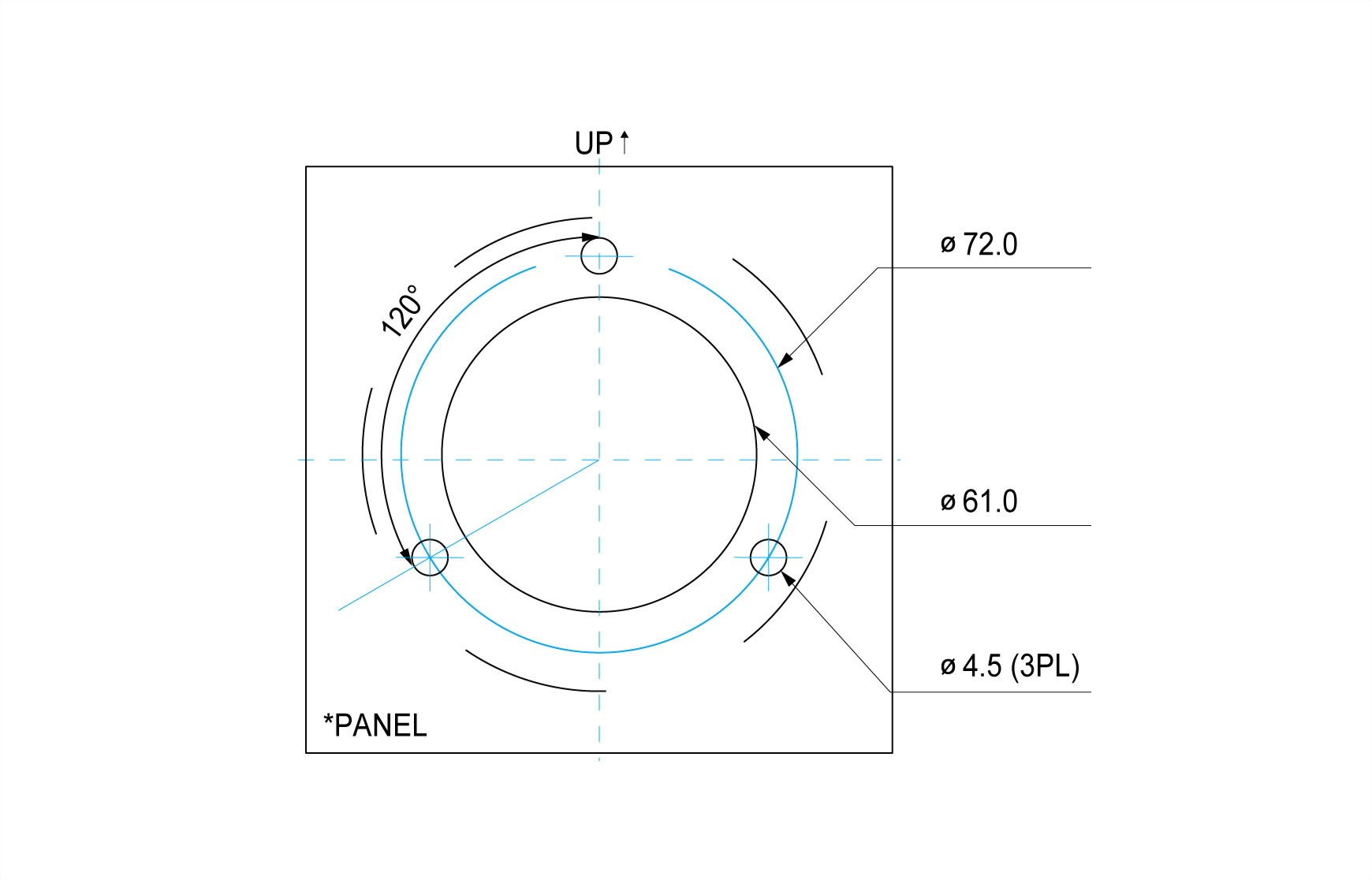

72mm manual pulse generator for operation panel The panel mounting hole


Ordering Information
For example: MPG 7 Series 1R5-MS7
Common controller specifications are as follows: 1D5 for SIEMENS, 1R5 for FANUC, 2R5 for MITSUBISHI.
1R5-MS7

Attachment
Specification-7 series Handwheel MPG for CNC machine control panel
72mm, 200RPM, DC5V Pulser handwheel, CNC machine rotary encoder.
CE certification-MPG, CNC handwheel encoder
Reliability, Impact-resistant and Light-weight Design.
