Interface Modules: Making Industrial Communication Easy

In industrial settings, communication between multiple devices is essential for information sharing and data exchange. However, the communication interfaces of industrial control equipment are diverse, and the different interface protocols between devices make it difficult to perform operations and information exchange between heterogeneous networks.

With our interface modules, you can quickly wire different interface devices and efficiently accomplish interactive operations between devices. Our modules are designed to support a variety of interface protocols, making it easy for different devices to communicate with each other. Our modules also offer flexible installation options, including panel mounting or DIN rail installation, providing greater convenience for your industrial communication needs.

Major parameters

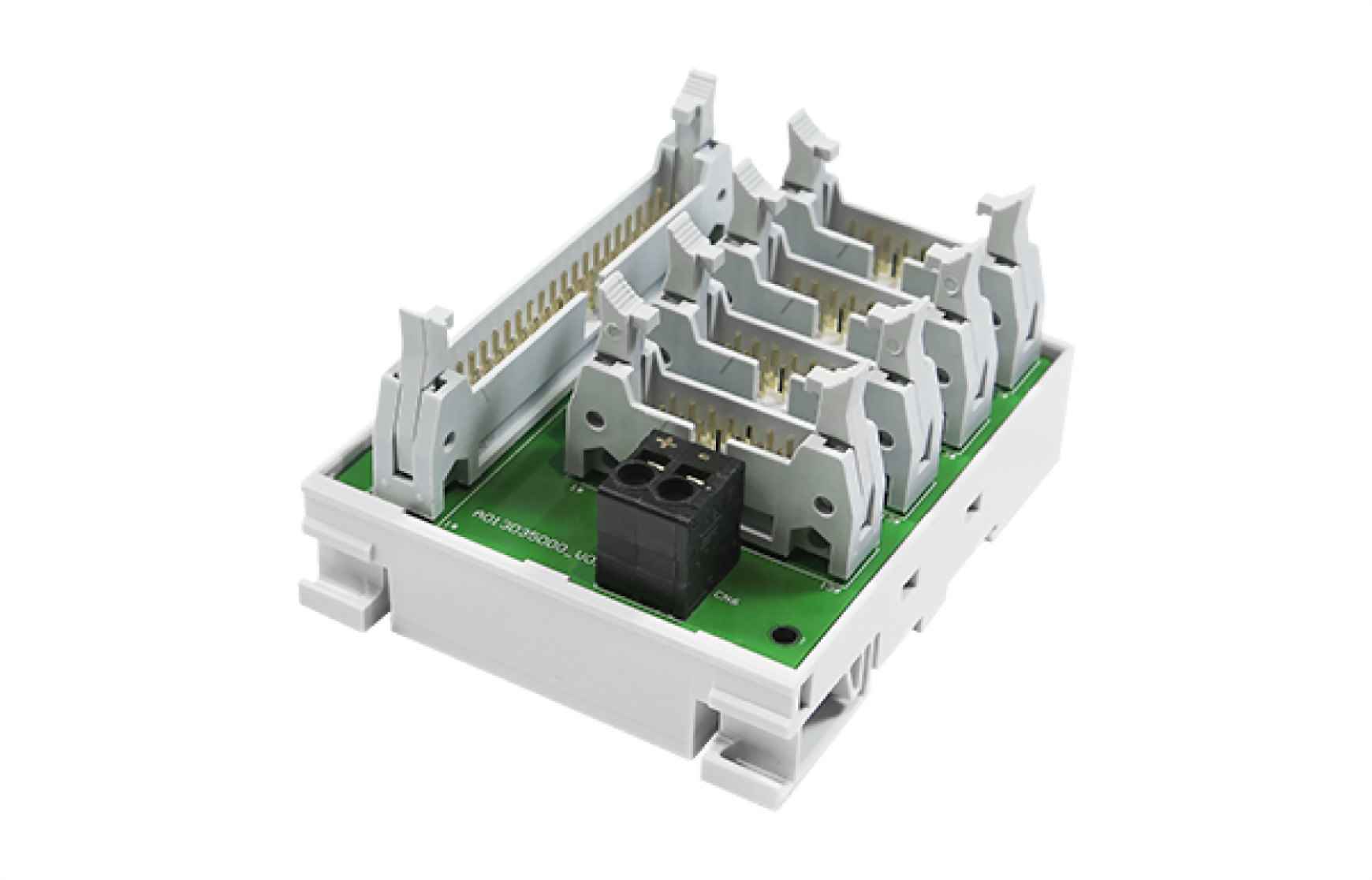

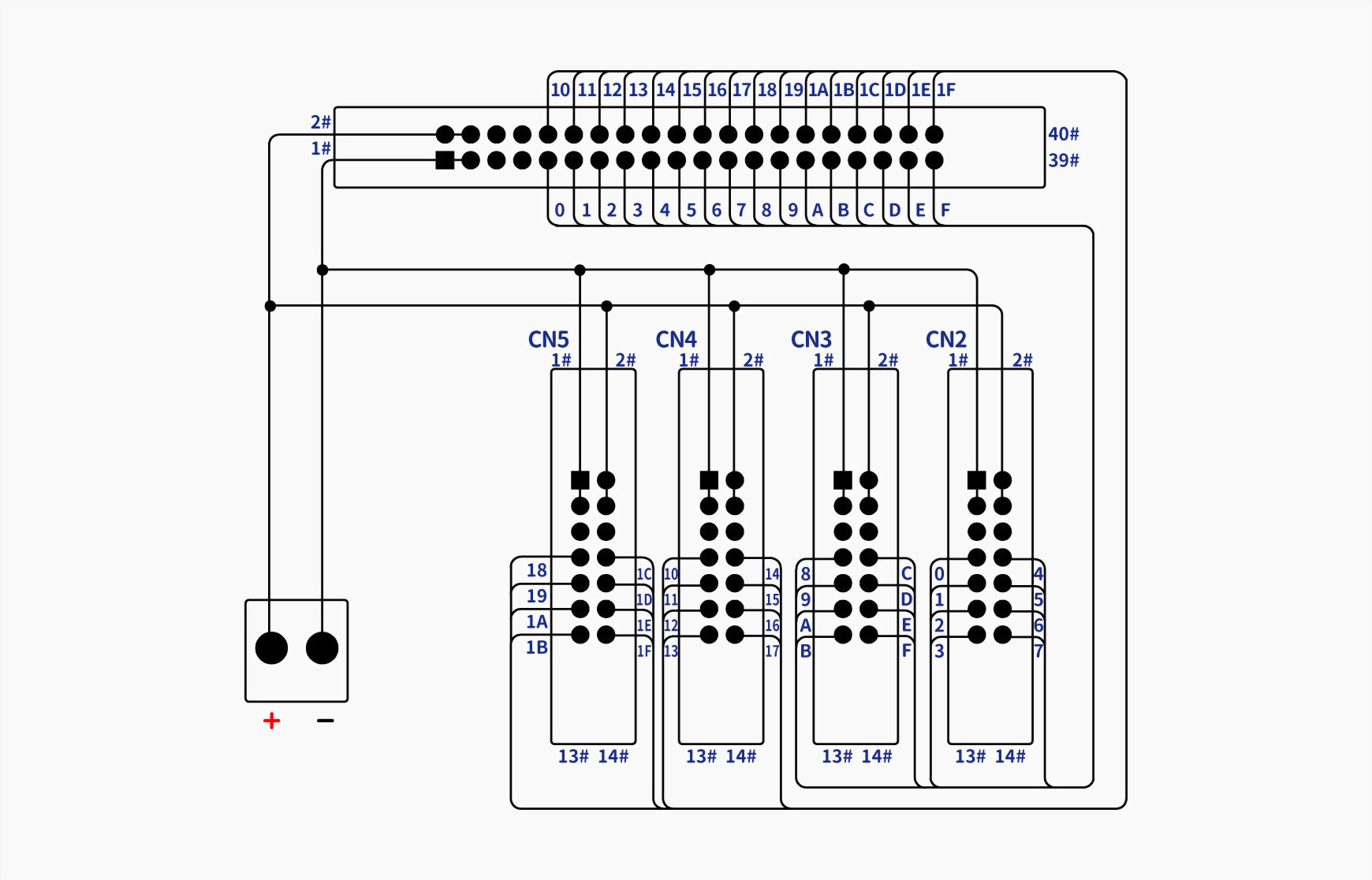

Interface Module 4-set connections, IDC 40-pin, 14-pin

SPECIFICATION
Connections	4 sets
Connection Method	PID
Rated Voltage	24VDC
Rated Current	1A
Wire Range	26-12 AWG
Stripping Length	9-10mm
Applicable Ferrules	DINKLE DN00510D, DN00710D, DN01510D
Input Type	-
Connector	IDC 40-Pin, IDC 14-Pin
Indicator	NO
LxWxH (mm)	65.2 x 77.9 x 43
Wire harness	Shielded: WHS33 Unshielded: WHN33

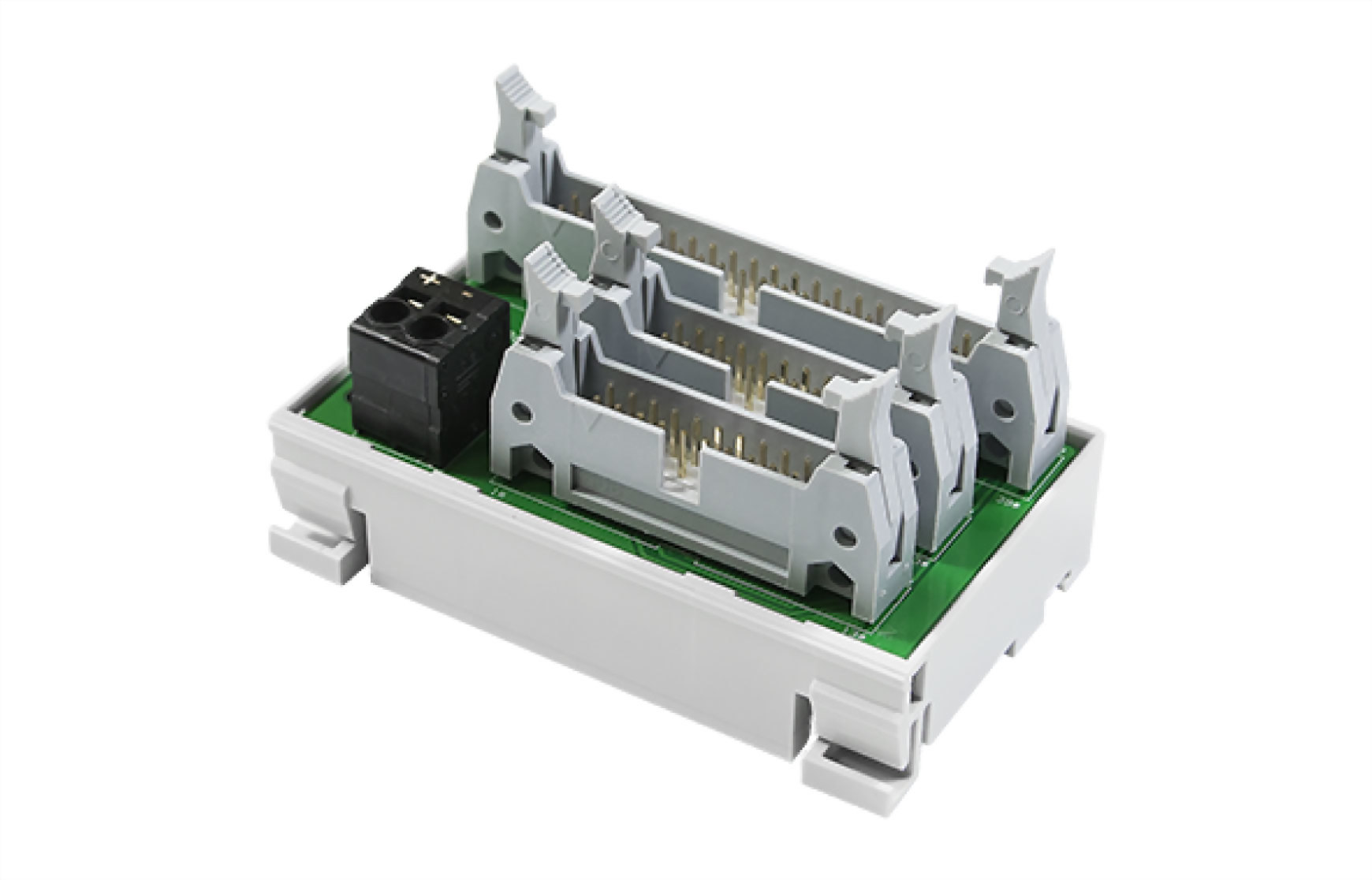

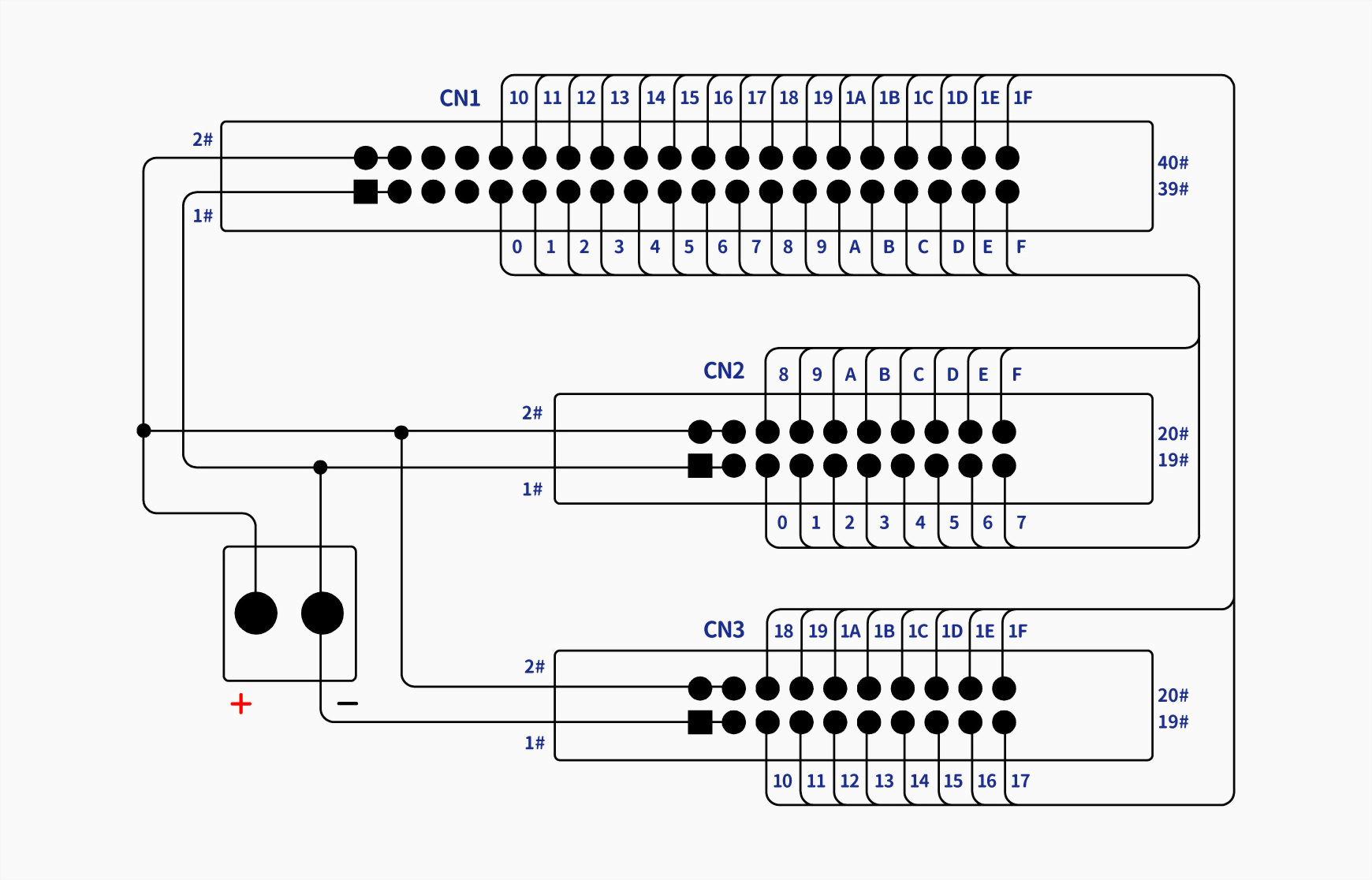

Interface Module 2-set connections, IDC 40-pin, 20-pin

SPECIFICATION
Connections	2 sets
Connection Method	PID
Rated Voltage	24VDC
Rated Current	1A
Wire Range	26-12 AWG
Stripping Length	9-10mm
Applicable Ferrules	DINKLE DN00510D, DN00710D, DN01510D
Input Type	-
Connector	IDC 40-Pin, IDC 20-Pin
Indicator	NO
LxWxH (mm)	76 x 47.9 x 43
Wire harness	Shielded: WHS33 Unshielded: WHN33

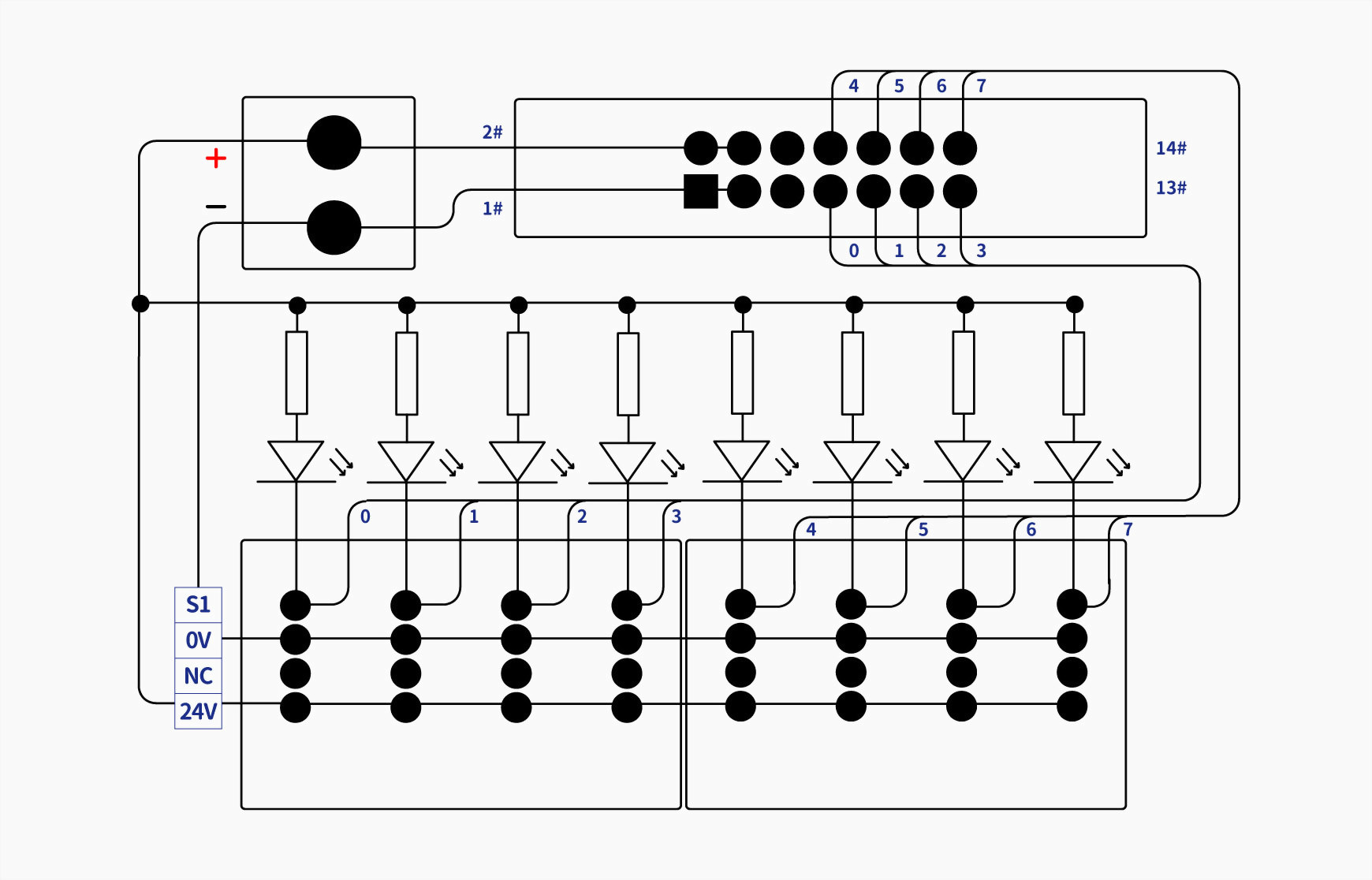

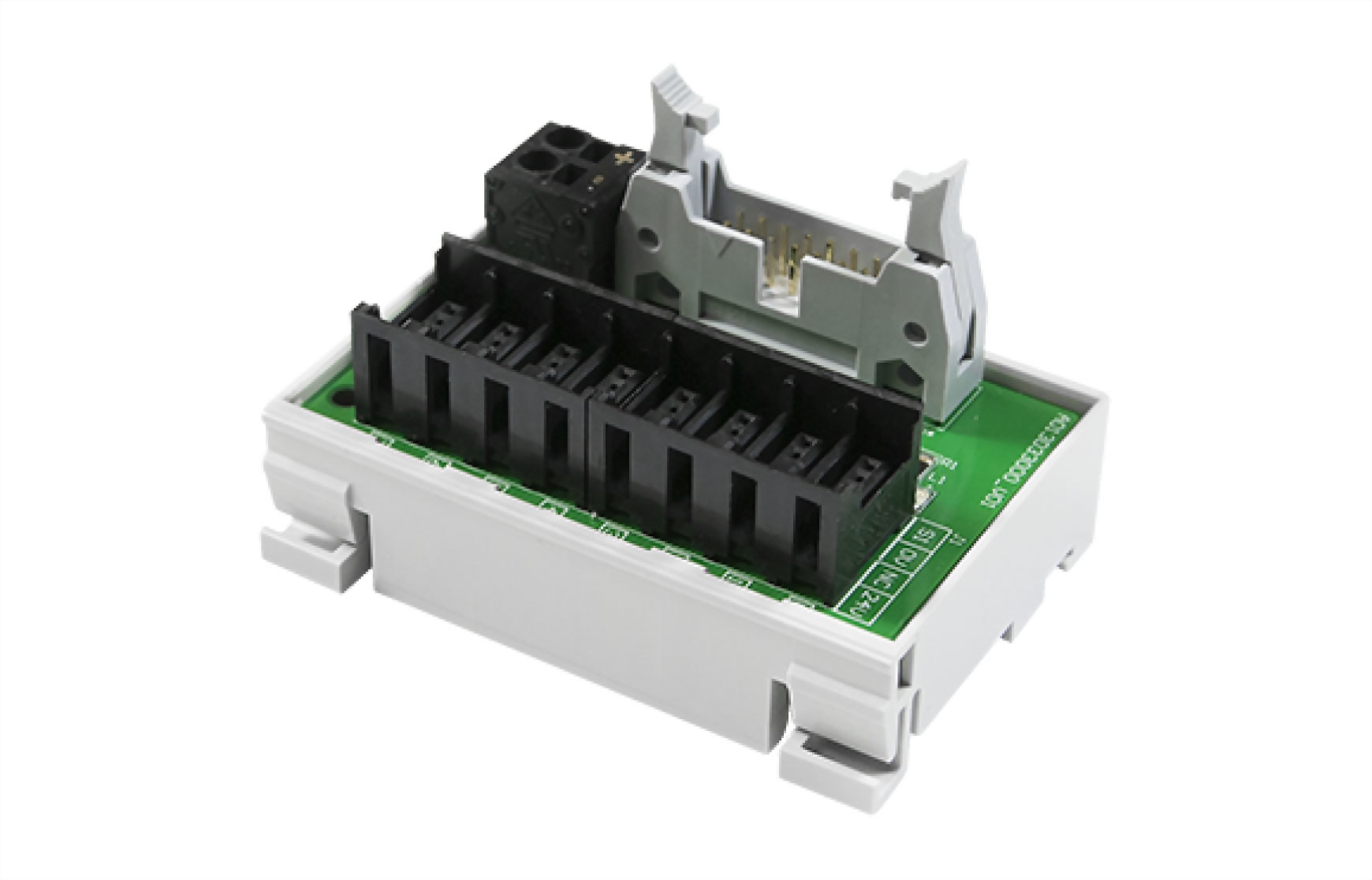

Interface Module 8-set connections, IDC 14-pin, mini-clamp

SPECIFICATION
Connections	8 sets
Connection Method	PID
Rated Voltage	24VDC
Rated Current	1A
Wire Range	26-12 AWG
Stripping Length	9-10mm
Applicable Ferrules	DINKLE DN00510D, DN00710D, DN01510D
Input Type	-
Connector	IDC 14-Pin, Mini-Clamp
Indicator	NO
LxWxH (mm)	68 x 47.9 x 43
Wire harness	Shielded: WHS33 Unshielded: WHN33

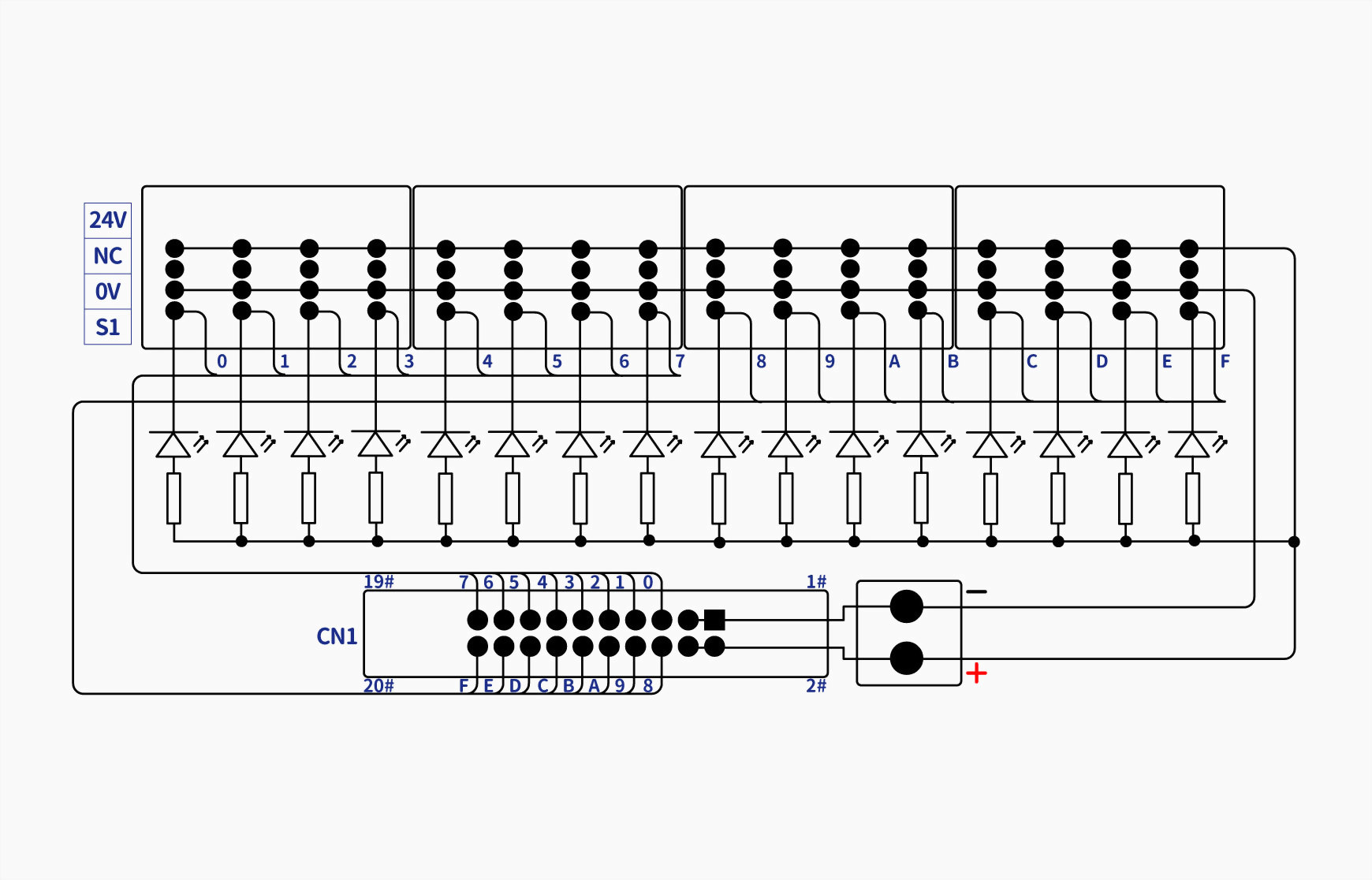

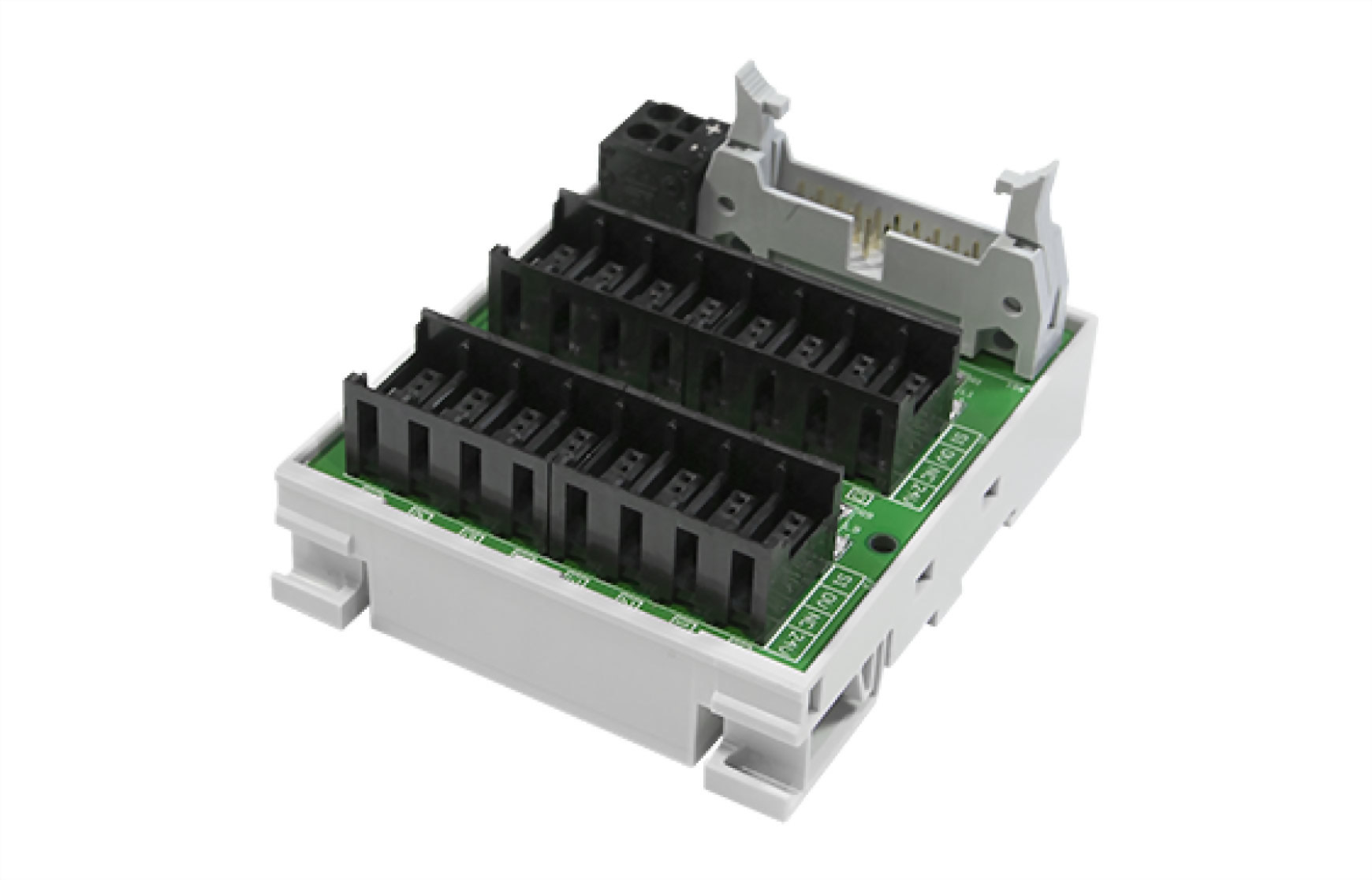

Interface Module 16-set connections, IDC 20-pin, mini-clamp

SPECIFICATION
Connections	16 sets
Connection Method	PID
Rated Voltage	24VDC
Rated Current	1A
Wire Range	26-12 AWG
Stripping Length	9-10mm
Applicable Ferrules	DINKLE DN00510D, DN00710D, DN01510D
Input Type	-
Connector	IDC 20-Pin, Mini-Clamp
Indicator	NO
LxWxH (mm)	65.2 x 77.9 x 43
Wire harness	Shielded: WHS33 Unshielded: WHN33

Interface Module PID connection, IDC

SPECIFICATION
Connection Method	PID
Rated Voltage	24VDC
Rated Current	1A
Wire Range	26-16 AWG
Stripping Length	9-10mm
Applicable Ferrules	DINKLE DN00510D, DN00710D
Input Type	NPN/PNP
Connector	IDC
Indicator	NO
Wire harness	Shielded: WHS33 Unshielded: WHN33
DIMENSIONS
Connection Number	LxWxH (mm)
14 pole	38.2 x 47.9 x 43
20 pole	49.8 x 47.9 x 43
26 pole	60.5 x 47.9 x 43
30 pole	68 x 47.9 x 43
34 pole	68 x 47.9 x 43
40 pole	76 x 47.9 x 43

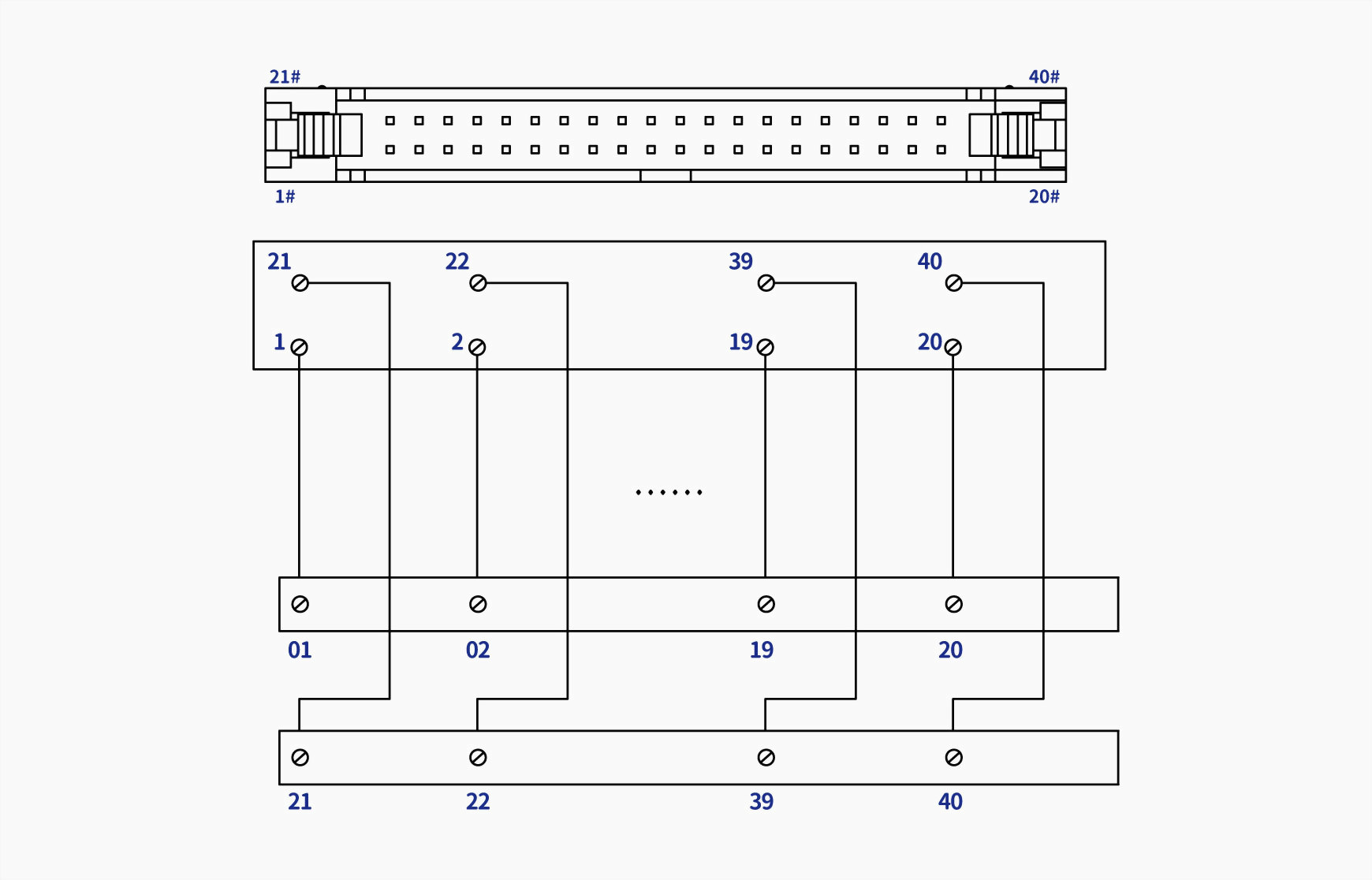

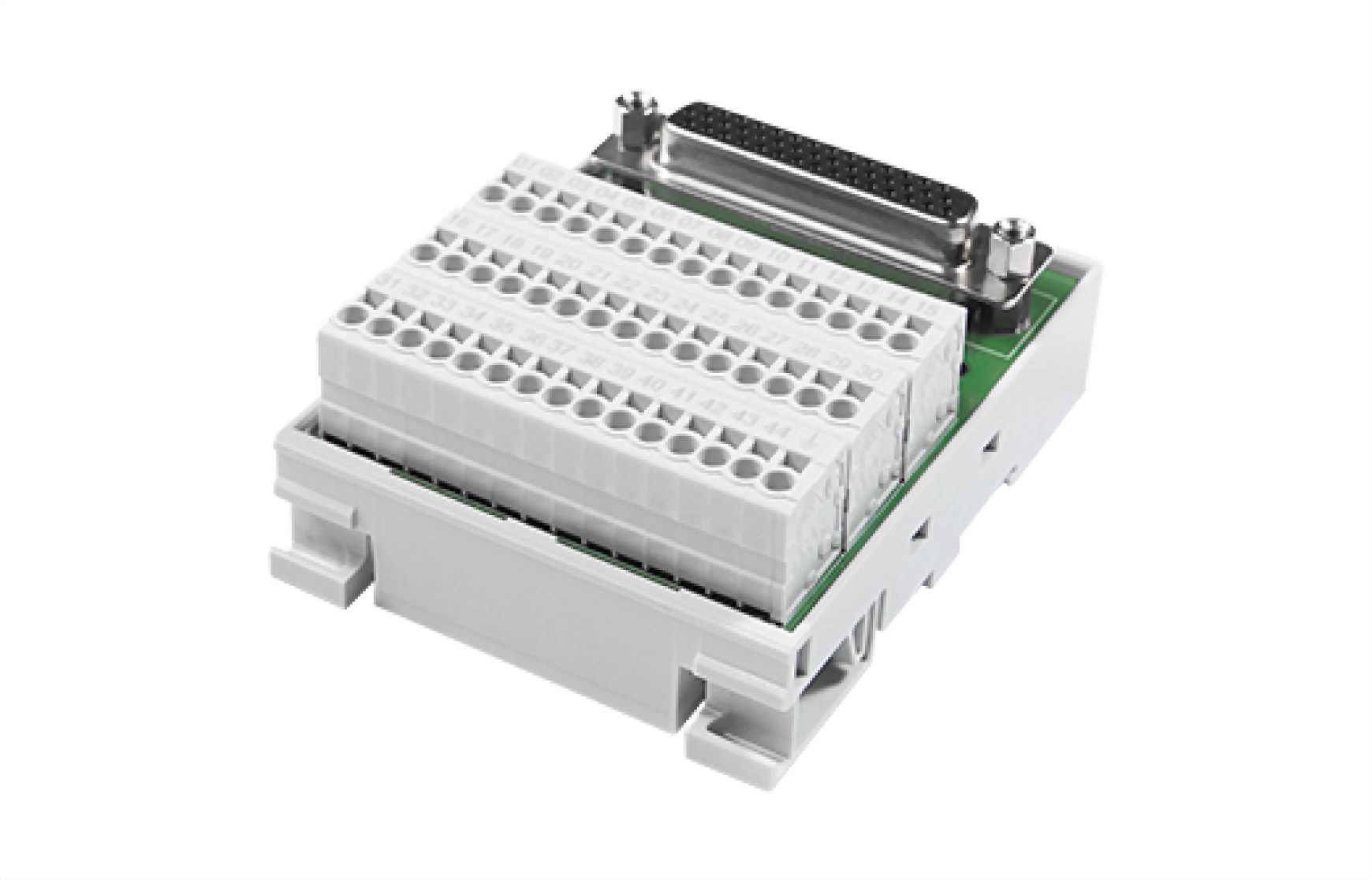

Interface Module Screw connection, IDC

SPECIFICATION
Connection Method	Screw
Rated Voltage	24VDC
Rated Current	1A
Wire Range	26-18 AWG
Stripping Length	6-7mm
Screw	M2.5
Rated Torque(N-m)	0.5-0.6
Input Type	NPN/PNP
Connector	IDC
Indicator	NO
Wire harness	Shielded: WHS33 Unshielded: WHN33
DIMENSIONS
Connection Number	LxWxH (mm)
20 pole	60.5 x 47.9 x 43
34 pole	111.1 x 47.9 x 43
40 pole	111.1 x 47.9 x 43

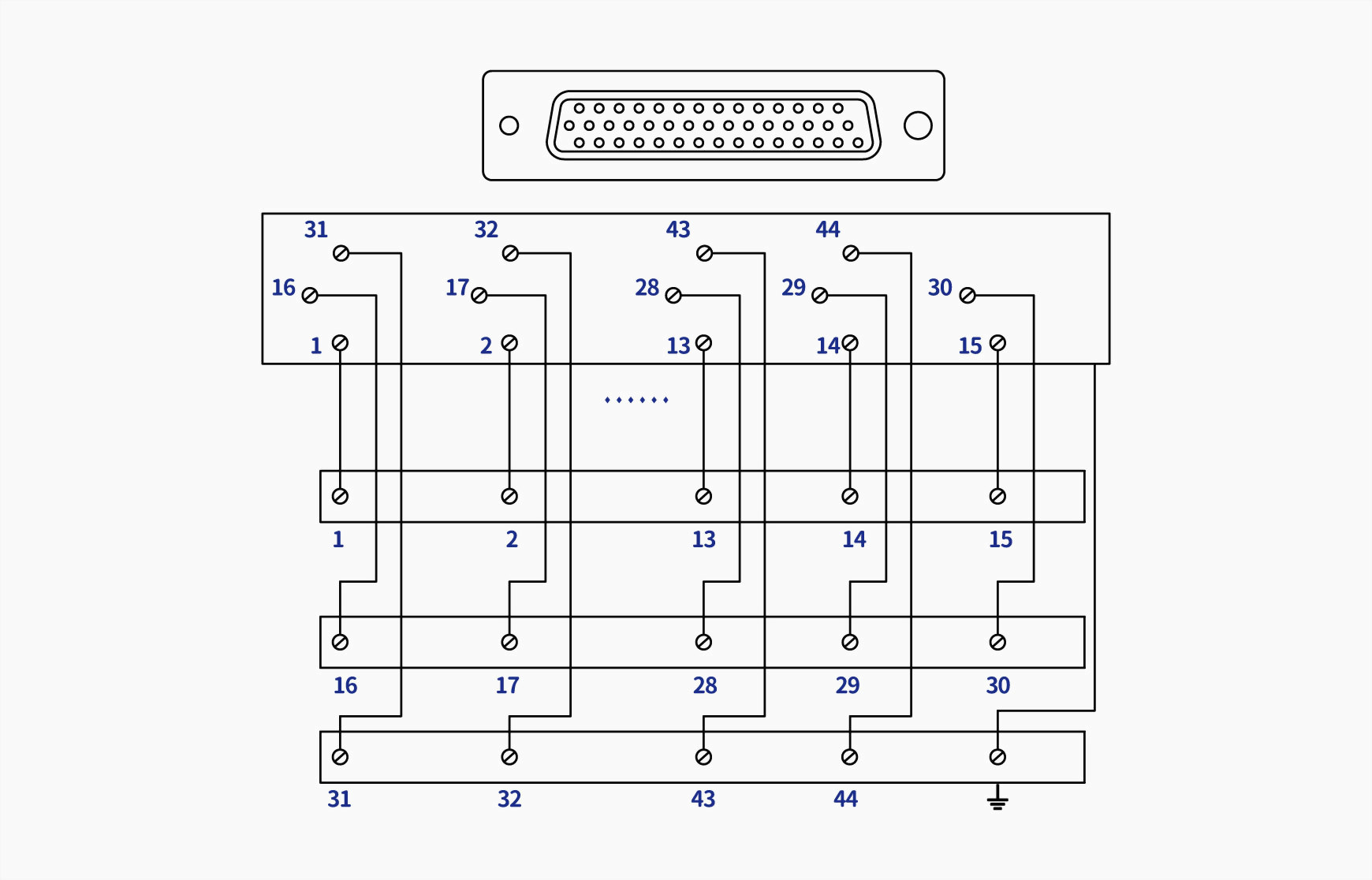

Interface Module PID connection, D-sub

SPECIFICATION
Connection Method	PID
Rated Voltage	24VDC
Rated Current	1A
Wire Range	26-16 AWG
Stripping Length	9-10mm
Applicable Ferrules	DINKLE DN00510D, DN00710D
Input Type	NPN/PNP
Connector	D-Sub
Indicator	NO
Wire harness	Shielded: WHS10, WHS11 Unshielded: WHN10, WHN11
DIMENSIONS
Connection Number	LxWxH (mm)
37 pole	60.2 x 77.9 x 30.3
44 pole	60.2 x 77.9 x 30.3

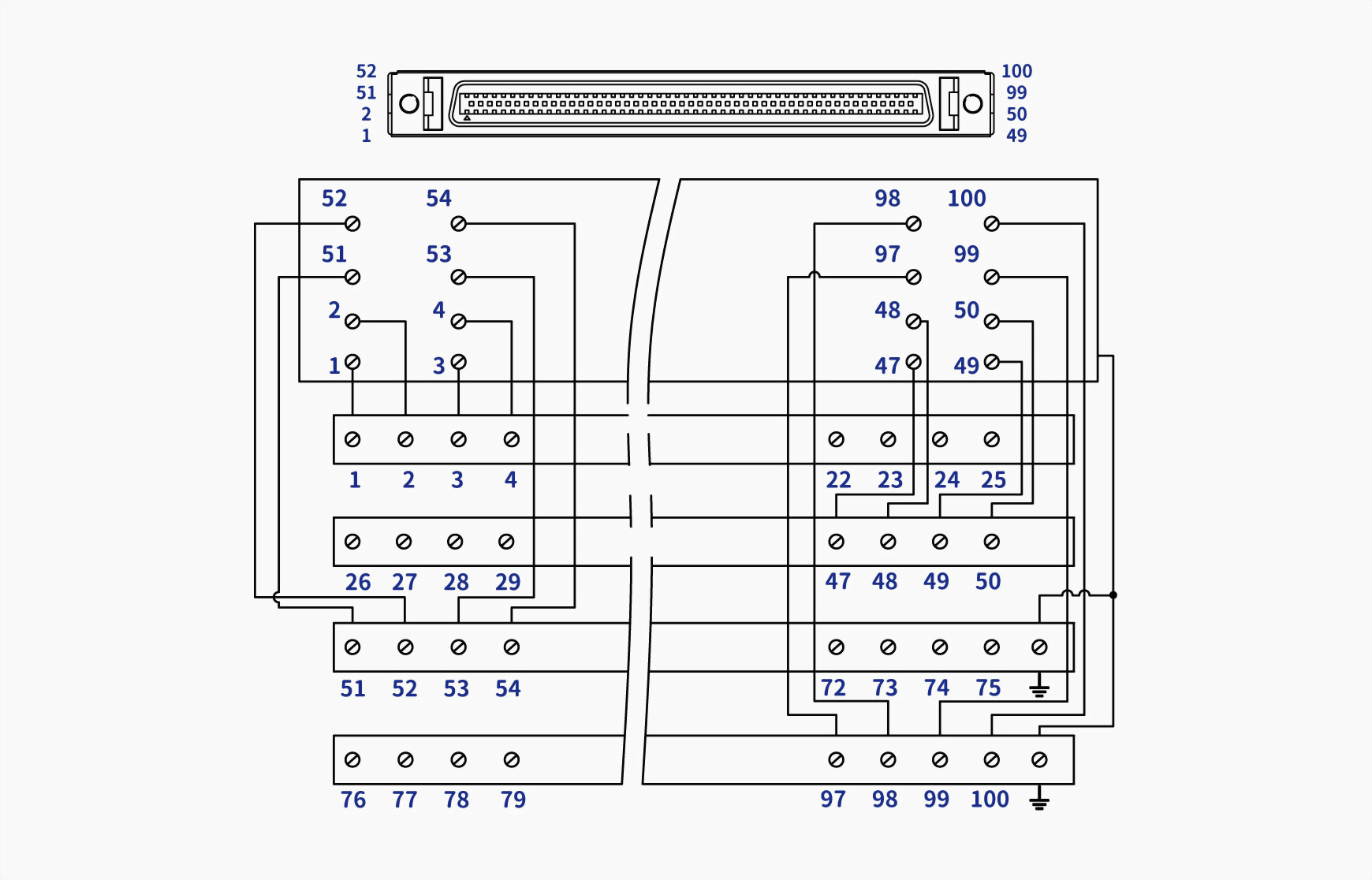

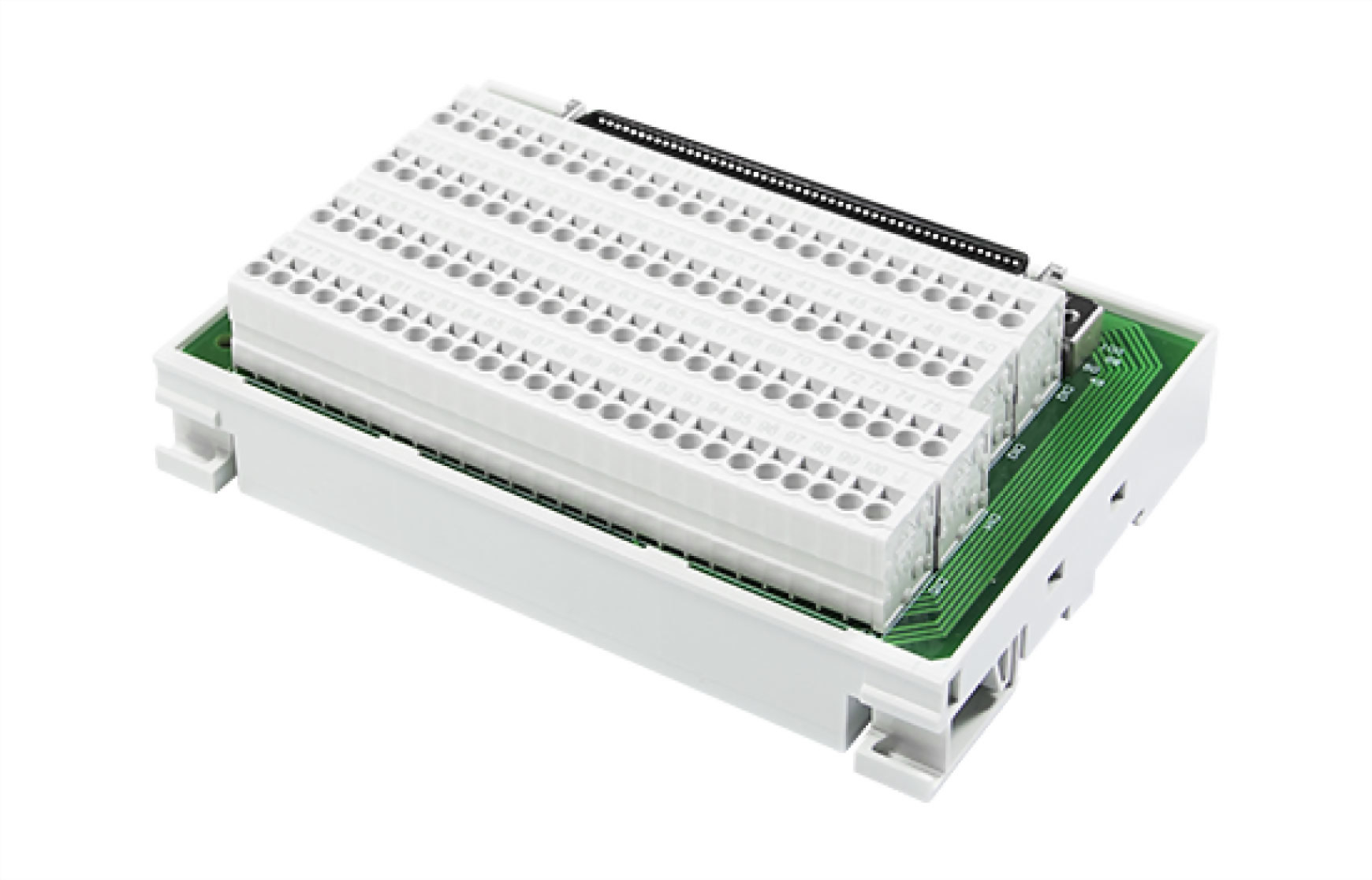

Interface Module PID connection, MDR

SPECIFICATION
Connection Method	PID
Rated Voltage	24VDC
Rated Current	1A
Wire Range	26-16 AWG
Stripping Length	9-10mm
Applicable Ferrules	DINKLE DN00510D, DN00710D
Input Type	NPN/PNP
Connector	MDR
Indicator	NO
Wire harness	Shielded: WHS55 Unshielded: WHN55
DIMENSIONS
Connection Number	LxWxH (mm)
50 pole	60.2 x 77.9 x 30.3
68 pole	94.2 x 77.9 x 30.3
100 pole	112.2 x 77.9 x 30.3

FEATURE

Versatility: Interface Modules support multiple communication protocols, making it easy to connect different devices with different interfaces.
Easy installation: Interface Modules are easy to install and can be quickly integrated into existing systems without the need for extensive rewiring.
Increased efficiency: With Interface Modules, communication between devices is streamlined, reducing communication errors and increasing overall efficiency.
Improved reliability: Interface Modules help to isolate and protect equipment from electrical interference, improving system reliability and reducing downtime.
Cost-effective: By using Interface Modules, companies can avoid the expense of replacing entire systems to accommodate changes in communication protocols, reducing overall costs.

Our interface modules make industrial communication simple and seamless, enabling efficient data exchange between devices with different interface protocols. With flexible installation options and efficient interactive operations, our modules provide a reliable solution for your industrial communication needs.
