Module circuit board, interface module, control board, IO board

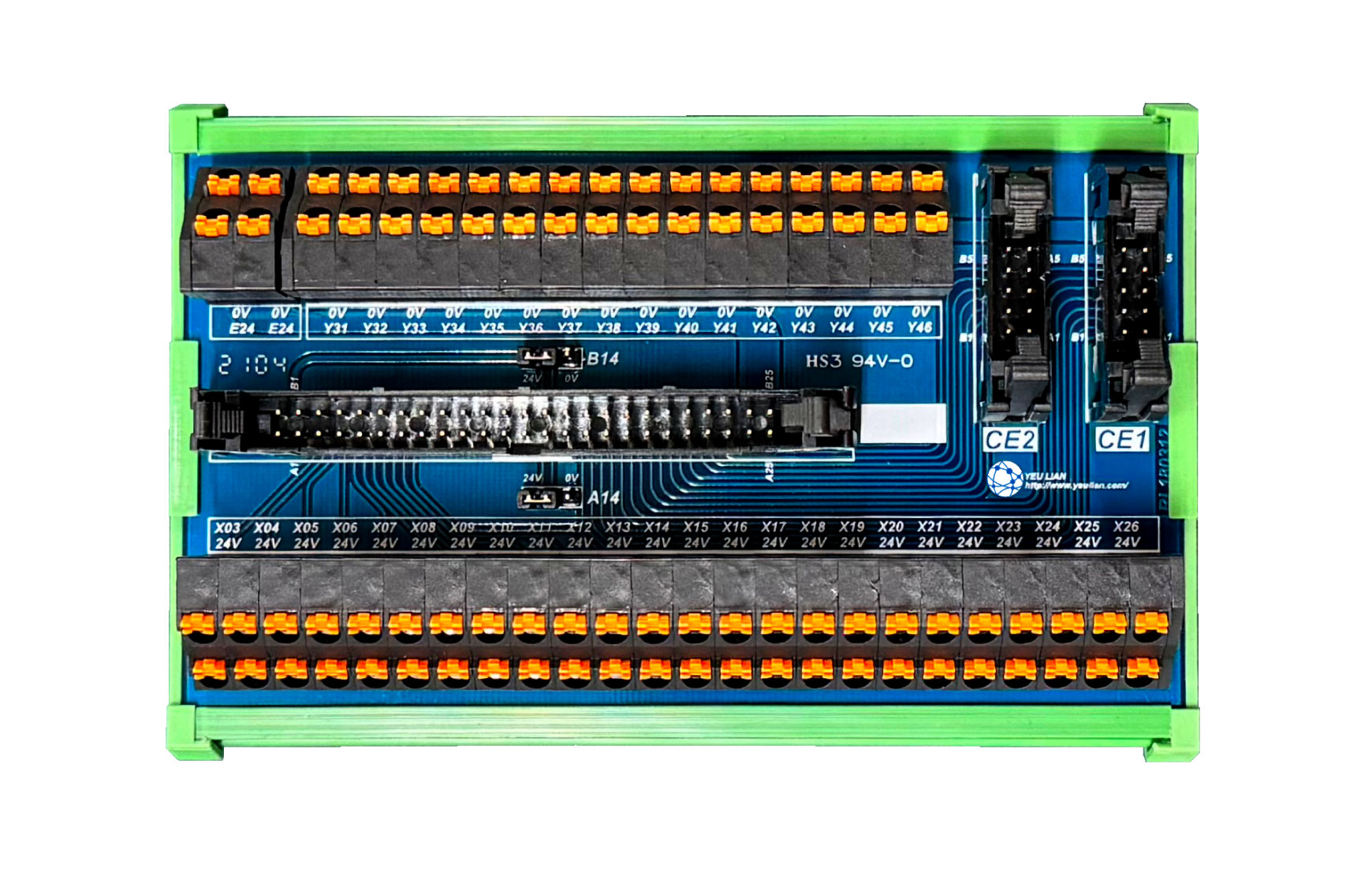

IO - FAN - M50
Cost-effective and eliminates wiring errors: wire-saving modules

YEU-LIAN provides all kinds of interface modules for communication, data processing and control, or other industrial applications. Meanwhile, there are also types of FANUC, SIEMENS, MITSUBISHI controllers, ribbon cables, flat cables, discrete wires, subminiature D/SD, male or female, IDC connectors.

The module can save more time and reduce wiring mistakes. It serves a cost-effective purpose in addition to extending component life.

Dimensions

Major parameters

Number of connections Connection method Rated voltage Rated current Wire range Applicable ferrules Connector Input Support Withstand Voltage Insulation Resistance
50 Poles PID 24 VDC 1A 10-28AWG Push-in/Screw/Pluggable IDC/MIL NPN/PNP AC 500V/1 min. 100MΩ
FEATURES
  • Modular circuit boards allow for easy customization and adaptation to market needs.
  • Upgrading to advanced technology is possible by replacing components, extending product life.
  • Modular circuit boards improve productivity and reduce costs through ease of replacement and maintenance.
  • Modular circuit boards are environmentally friendly by extending product life and reducing waste.
  • Modular circuit boards provide design efficiency and high reliability through easy integration and individual module replacement.
  • Multiple modules can be mounted on a single circuit board, saving space and simplifying wiring.
  • Modular circuit boards make it easy to expand product functionality and improve productivity on the production line.
  • The connectors available for use are D-SUB, RL45, RS232, USB, European terminals, and Ethernet, with OEM/ODM circuit design customization.
Ordering Information
Examples: IO-FAN-M50
The circuit board (include the relays) has a two-year warranty. The limited warranty does not include failures due to abuse or accidental damage.
