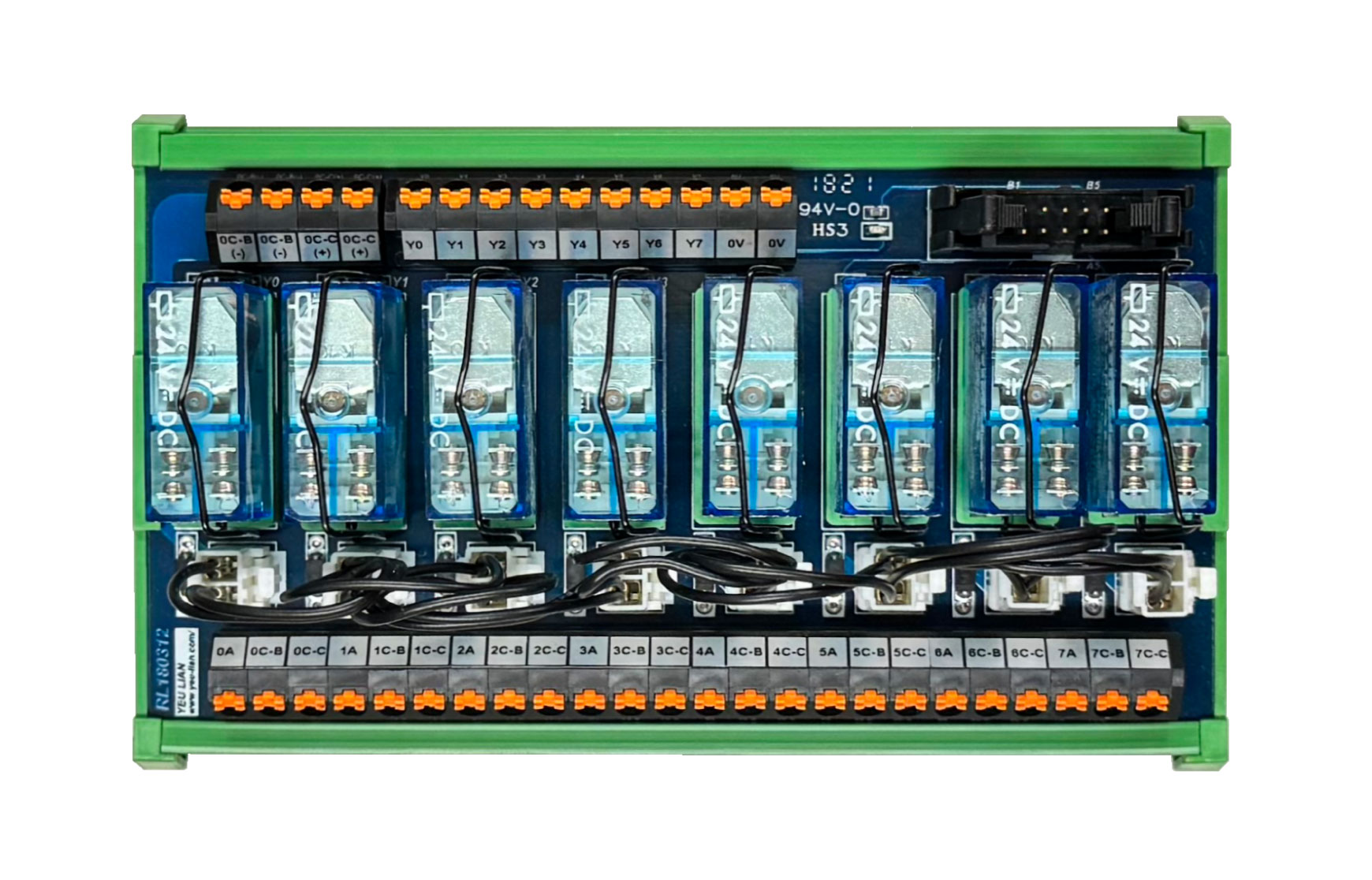

Relay Module for CNC PLC PCB

RELY - 8 - SI - DC24 - D - A22
Enhancing Efficiency, Cost Savings: Relay Modules

Experience time and cost savings with our advanced Relay Modules. With high-density distribution, we've reduced the size by approximately 50% compared to previous models. YEU-LIAN's relay module offers a flexible and cost-effective transition from various connector brands and types to terminal blocks.

Our modules adhere to industry standards such as SPDT, DPDT, N/C, N/O, and COM. Available in configurations like 1 pole, 4 poles, 8 poles, 16 poles, and 32 poles, they support relays from recognized brands like ORMON, FINDER, IDEC, and others. Our offerings extend to FRC/IDC, ribbon cables, spring-cage, and screw-cage clamps, among other options.

Additionally, our relay modules are equipped with essential components, including diodes, fuses, varistors, and optocouplers (I/O). Experience enhanced functionality and streamlined connectivity with YEU-LIAN's Relay Modules.

Major parameters

Contact configuration Rated current/maximum Rated voltage/maximum Rated load AC1 Rated load AC15 Single motor rating (230 V AC) Breaking capacity
2 CO(DPDT) 8/15 A 250/400 V AC 2000 VA 400 VA 0.37 DC1: 30/110/220 V 8/0.6/0.25
Minimum switching load Standard contact material Electrical life Mechanical life Withstand voltage (contacts) Withstand voltage (coil) LED indicator
300(5/5) AgNi More than 150,000 times (at rated load AC1) AC / DC More than 10 million times VAC 1000 50/60 Hz / 1min. 8mm. 6kV(1.2/50μs) isolation Red/Green
FEATURE
  • Time and Cost Efficiency: Our Relay Modules are designed with efficiency in mind, saving you valuable time and costs in installation and maintenance.
  • Streamlined Wiring: These modules are engineered for wiring savings, accelerating installation and enabling easy replacements when needed.
  • Plug-and-Play Design: The plug-in design ensures convenient wiring and significantly reduces setup times.
  • Visual Operation Monitoring: Equipped with LED action indicators, you can easily monitor the operational status of the product.
  • Enhanced Signal Integrity: Gold-plated double contacts effectively prevent interference and error signals, ensuring reliable performance.
  • Flame-Retardant Materials: The use of flame-retardant materials provides effective protection against component meltdown.
  • Versatile Automation: Tailored for CNC machines and industrial equipment's automation demands, these modules excel in various applications.
  • Flexible Installation: Choose to install these modules on guide rails or fixed screw holes in electronic cabinets, complying with numerous industrial standard guide rail specifications.
  • Broad Compatibility: Compatible with controllers from respected brands like MITSUBISHI, FANUC, and SIEMENS.
  • Diverse Terminal Block Options: Our modules support various terminal block standards, including European standard, Japanese standard, in-line, and shrapnel terminal blocks.
  • Reliable Relays: Utilizing reputable relay brands such as OMRON, FINDER, these modules ensure dependable operation.

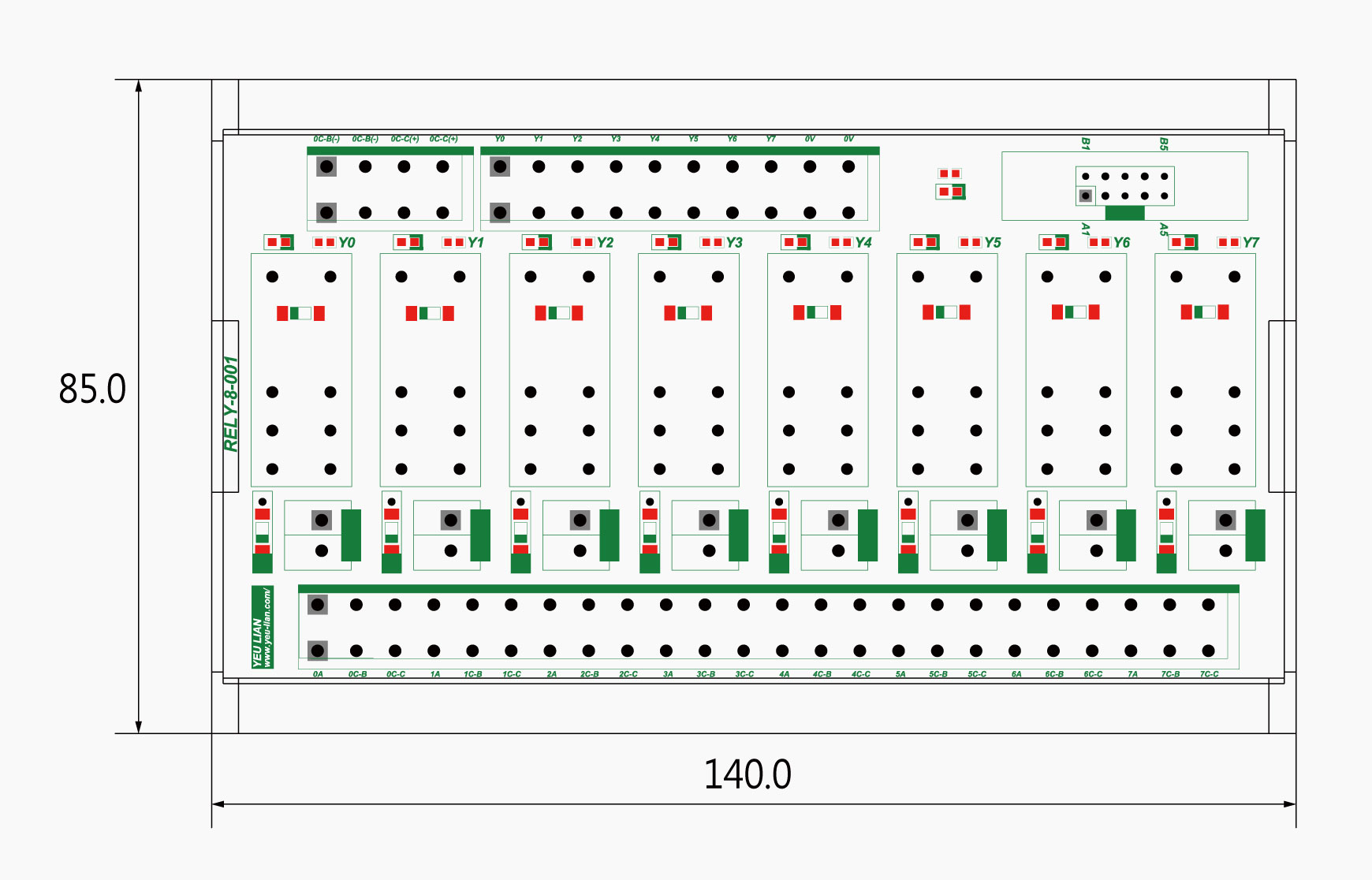

Dimensions


Ordering Information

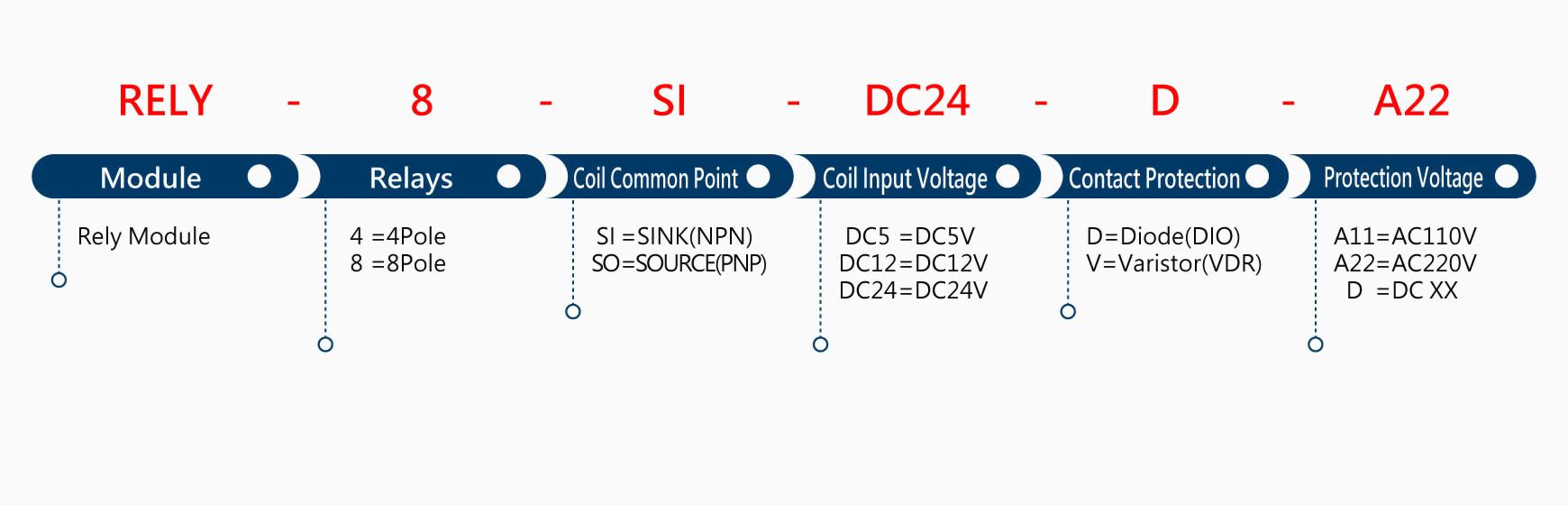

Example: RELY-8-SI-DC24-D-A22
The circuit board (include the relays) has a two-year warranty. The limited warranty does not include failures due to abuse or accidental damage.
